ADH-87551

Panel CAT5e feedthrough, D-shape, Black housing

RJ45 feedthrough receptacle, black D-shape metal flange with the latch lock, mounting screws included The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry. The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market. Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables. Features & Benefits •Accommodates NE8MC* or any standard RJ45 plug •Approved latch lock system •Mountable from the front or rear of the panel •Complies with Cat 5e according to TIA / EIA 568B and ISO / IEC 11801 standard

D-shape CAT6_A panel connector, shielded, feedthrough, Nickel housing

D-shape CAT6A panel connector, shielded, feedthrough, Nickel housing Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables. Features & Benefits •Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2 •PoE+ compliant according to 802.3at Type2 •Rugged latch lock system million fold proven •Intermateable with the existing etherCON CAT5 range •Shielded system - high noise immunity and EMI protection

Axept CAT6S/FTP cable black

• S/FTP Cat.6 4x2xAWG 27 LSHZ
• Outer diameter 6,2mm
• Flame retardant acc. to IEC-60332-1
• Length imprinted on strain relief
• Contacts gold-plated

Connector: RJ45 plug shielded and gold plated contacts
Boot: PVC 75A / Length imprinted
Cable: S/FTP Cat.6 4x2xAWG27 LSZH
Outer diamete: r 6.2mm
Bending radius: 5 x outer diameter
Jacket: Flame retardant acc. to IEC 60332-1
Printing: Cat.6 S/FTP 4x2xAWG27/7 PIMF ISO/IEC 11801 & EN50173-1 TIA/EIA 568.2-1
Halogen Free ***Gigabit***
general temperature range 0° up to + 60°C
withstand voltage 500V DC

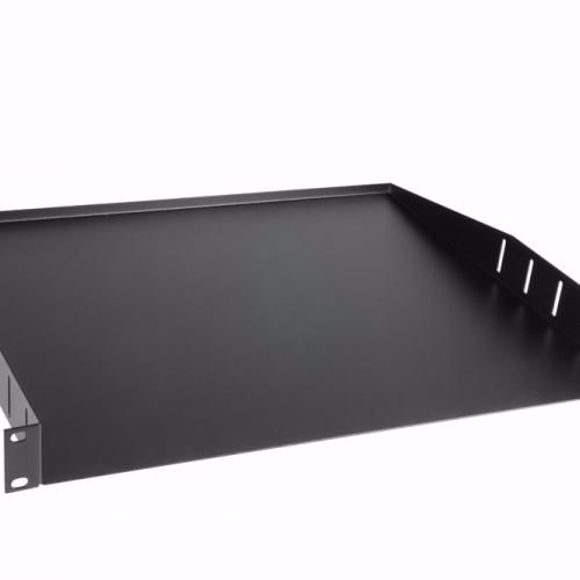

19" Rack cradle 1 U

Product type 19" Rack Cradles Material steel Surface powder coated Colour Black Height 1 U Width 19 " Depth 250 mm Material thickness 1.5 mm Weight 1,6 kg

Declaration of Conformity
