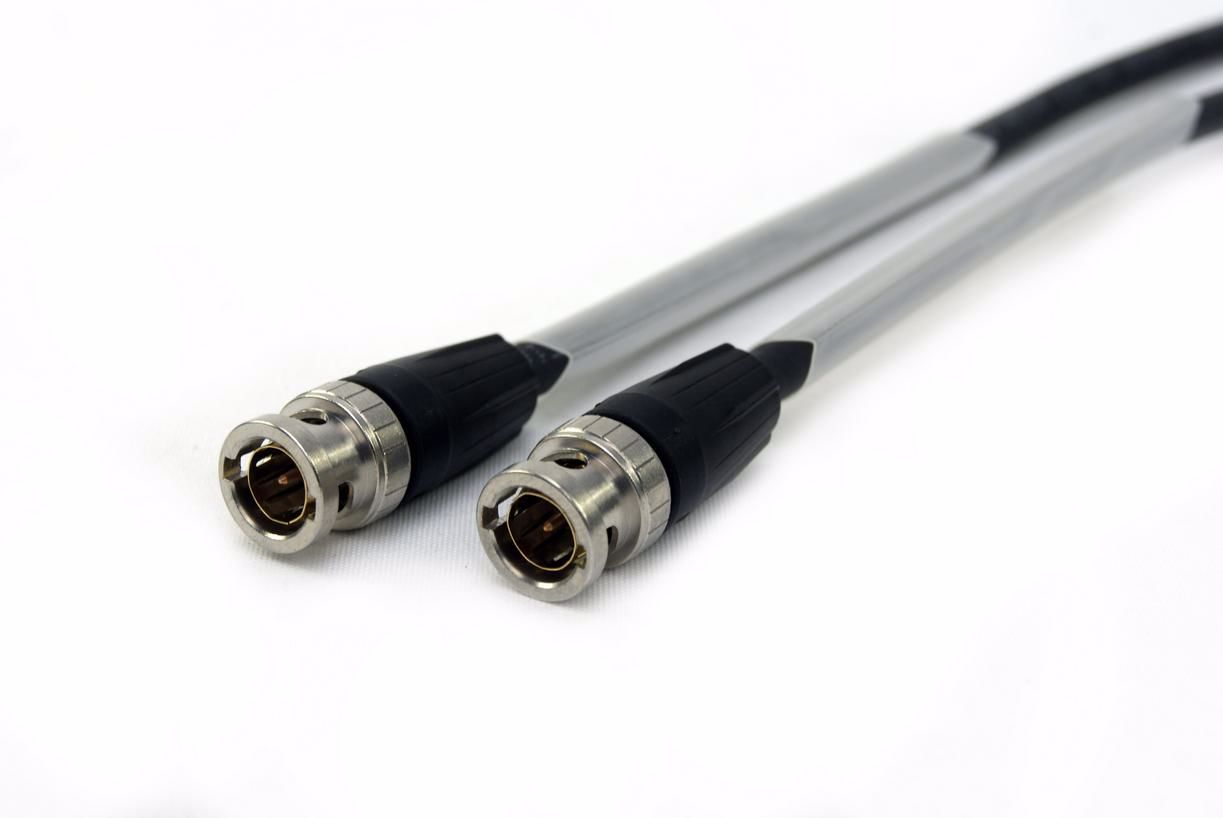

AXE-BNC/NEU/1505F

BNC cable / Belden / Neutrik connector

Cable : Belden video cable 1505F black Connector : Neutrik BNC BJP9 Accesories : Transparent Heat Shrink x 2
Manufacturer: Axept
Availability: Out of stock (Short delivery)
*
Customers who bought this item also bought

PRM-CAT6

Axept CAT6S/FTP cable black

• S/FTP Cat.6 4x2xAWG 27 LSHZ
• Outer diameter 6,2mm
• Flame retardant acc. to IEC-60332-1
• Length imprinted on strain relief
• Contacts gold-plated

Connector: RJ45 plug shielded and gold plated contacts
Boot: PVC 75A / Length imprinted
Cable: S/FTP Cat.6 4x2xAWG27 LSZH
Outer diamete: r 6.2mm
Bending radius: 5 x outer diameter
Jacket: Flame retardant acc. to IEC 60332-1
Printing: Cat.6 S/FTP 4x2xAWG27/7 PIMF ISO/IEC 11801 & EN50173-1 TIA/EIA 568.2-1
Halogen Free ***Gigabit***
general temperature range 0° up to + 60°C
withstand voltage 500V DC

SOM-200-0001

Microphone Cable Stage 22 Highflex; 2 x 0,22 mm²; PVC Ø 6,40 mm; black

Technical Data: - Properties: Analog - Properties: OFC oxygen free copper - Application area: Stage / live - Application area: Mobile outdoor / indoor - Application area: Installation - Application: Microphone Cable - Colour: black - Colour detailed: black - Signal transmission: symmetrical - Jacket material: PVC - Jacket Ø: 6,4 mm - Number of Channels (audio): 1 - Inner conductor (audio): 2 - Inner conductor (audio): 0,22 mm² - Inner conductor Ø (audio): 0,53 mm - AWG (audio): 24 - Shielding: Copper spiral shielding with 0.10 mm indiv. strands - Copper strands (audio): 28 - Copper strand Ø (audio): 0,10 mm - Weight per 1 m: 44 g - UV-resistant: yes - Fire load per m: 0,22 kWh - Style variant: round - Shielding factor: 99 % - Packing: 100 m spool - Packing: 500 m spool - Temperature min.: -20 °C - Temperature max.: 70 °C - Width: 6,4 mm - Height: 6,4 mm - Capac. cond./cond. per 1 m (audio): 68 pF - Capac. cond./shield. per 1 m (audio): 130 pF - Impedance: 100 Ω - Insulation resist. per 1 km: 1 GΩ - Insulation resist. per 1 km (audio): 1 GΩ - Conductor resistance per 1 km: 87 Ω - Shield. resistance per 1 km: 30 Ω

TIT-3G2.5

Titanex H-07RN-F 3G2,5mm²/m - Outside diameter: 14mm

The TITANEX® flexible rubber cable range offers exceptional performances and is designed to release you from all your constraints. Robust yet flexible, TITANEX® is easy to use and withstands the toughest of conditions, such as hard-wearing situations, extreme temperatures and most chemicals. For more than 50 years the TITANEX® cable range properties have been recognized as the best choice for all mobile and fixed installations in industrial environments such as construction sites, cranes, machines tools, factories, generators etc.

TITANEX® is also suitable for public environments and temporary events such as festivals or sports competitions, where the cable is often laid directly on the ground with no protection.



The cable may be rated 0,6/1 kV where the installation has built-in protection and for motors in lifting appliances - machine tools - etc.

NEU-NBB75DFGB

Grounded BNC chassis connector, feedthrough in black D-shape housing

Grounded BNC chassis connector, feedthrough in black D-shape housing Neutrik's BNC chassis connectors offer a true 75 ? design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use and is in addition recessed and therefore well protected in a D-shape housing (audio industry standard). Features & Benefits •Gold plated cage type center contact •True 75 ? design meets the stringent HD requirements •Grounded panel mount •Standard D-shape housing - provides flush mounting and protection from demage •Color coding possible New cage type contact •Closed contact design - extremely robust •Gold plated cage type clip - best possible shielding and lowest contact resistance
