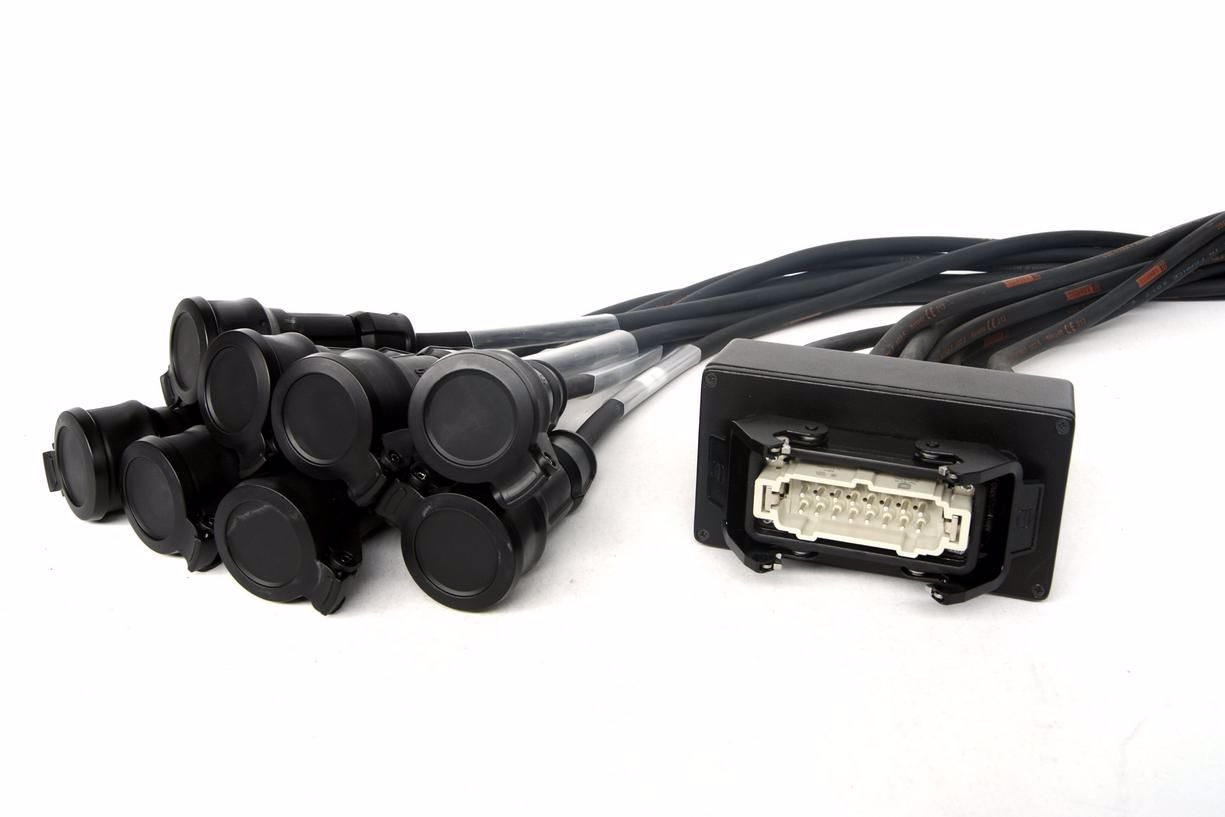

AXE-HARTING/BREAK-OUT/SCHUKO

Male Harting to 8 x SCHUKO Female 1,5m

Standard wiring 1+9, 2+10, 3+11, 4+12, 5+13, 6+14, 7+18, 8+19
Belgian/French standaard ! PEN EARTH !!
Manufacturer: Axept
Availability: In stock
Products specifications
SQMM 2,5mm²
Products specifications
SQMM 2,5mm²
Customers who bought this item also bought

ARN-STRAP25-BLACK

CABLESTRAP 25 MM Black buckle. Extra cable loop.

"

STRAPS

You can have Arno-straps just as you want them! They are available in widths 18, 20, 25, 30, 40 and 50 mm, and are manufactured in the standard lengths 30 cm to 8 m. The colours available are black, white, yellow, red, blue and green. If any other colour or length of strap is required, we can meet practically all your wishes.

"

Also available with woven text/logo !!
More info via mail: axept@axept.be



AXE-BAG-DS-TUBE

Bag for display stand pole

HAR-19307160737

Hood 16E/72DD - Top Entry - High - Levers - M32 - Black

Artikelnummer 19 30 716 0737 Beschrijving Han B Hood Coupler HC 2 Levers M32 Type sheet PDFPDF Identification Category Hoods/Housings Series of hoods/housings Han® B Type of hood/housing Cable to cable housing Description of hood/housing Black Type High construction Locking type Double locking lever Han-Easy Lock® Yes Version Size 16 B Version Top entry Cable gland 1x M32 Field of application Standard hoods/housings for industrial connectors Technical characteristics Limiting temperature -40 ... +125 °C Degree of protection acc. to IEC 60529 IP65 Degree of protection acc. to UL 50 12 4 4X Flammability acc. to UL 94 (locking levers) V-0 Material properties Material (hood/housing) Aluminium die-cast Surface (hood/housing) Powder-coated Colour (hood/housing) RAL 9005 (jet black) Material (seal) NBR Material (locking) Stainless steel Polycarbonate Colour (locking) RAL 7037 (dust grey) Net weight 264.8 g RoHS compliant Specifications and approvals GL Yes

Declaration of Conformity

LAP-5311.1240

Black Plastic M32 from Lapp - Cable OD 11-21mm

SKINTOP ST-M 32x1,5 RAL 9005 BK



SKINTOP® ST-M, increased oil-resistant plastic cable gland with variable clamping ranges, permanent vibration protection, for offshore platforms

Article designation / size: M 32 x 1,5; Clamping range ØF mm: 9 - 21; SW wrench size mm: 36; Overall length C mm: 47.0; Thread length D mm: 10; Pieces / PU: 25; Cable gland system: Single entry system; Thread type: Metric; Product Group: Cable screw gland; Material quality: Polyamide; Colour: Black; Size: 32x1,5; Clamping range min.: 11; Clamping range ma.: 21; Temperature range max.: 100; Temperature range min.: -40; Degree of protection (IP): IP 68 - 5 bar; Approbation: CE / CULUS / VDE / cRUus / GGVS / DNV
