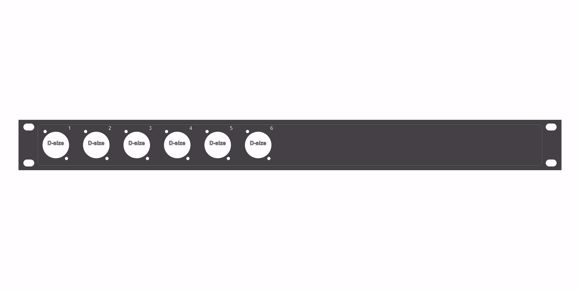

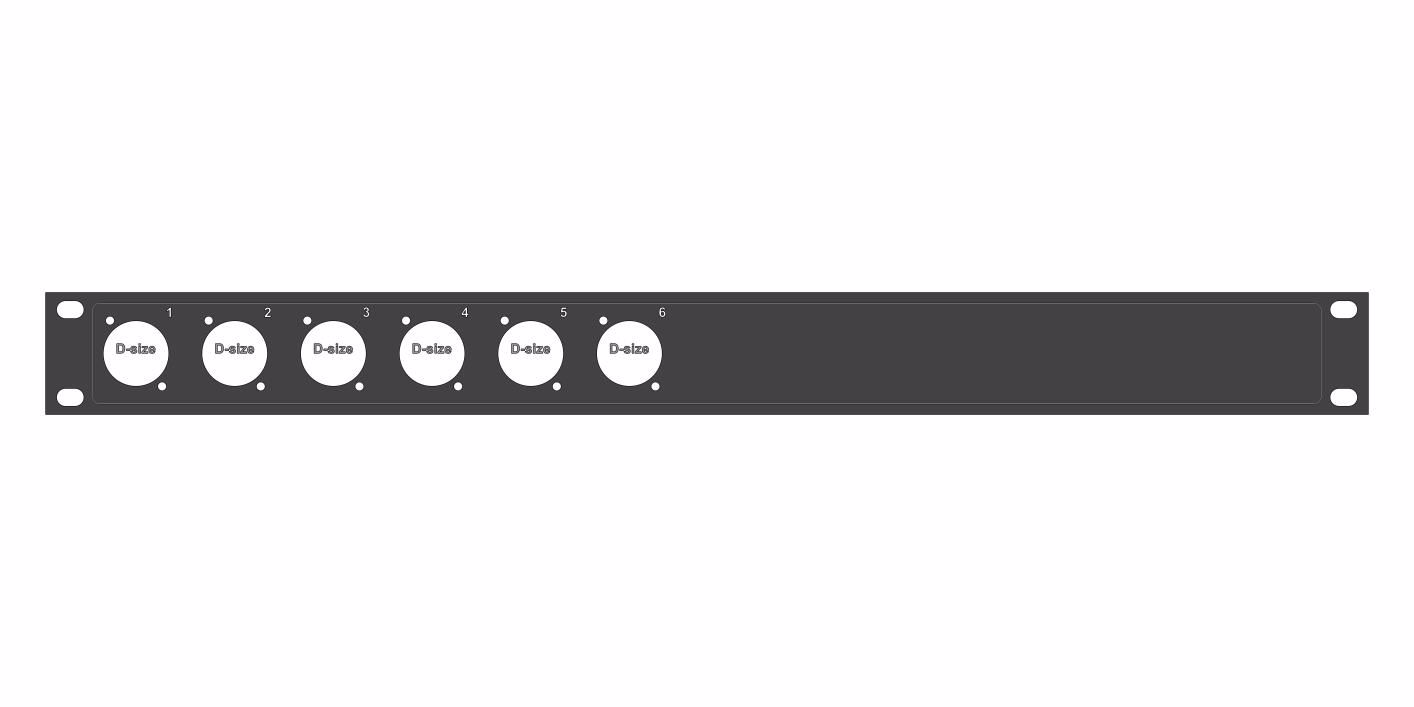

AXE-PANEL-1U/6D/L

Panel 3 pole Female, Black housing, silver contacts, D-size

Panel 3 pole Male, Black housing, silver contacts, D-size

3 pole male receptacle, solder cups, black metal housing, silver contacts The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector. Features & Benefits •All metal housing offers best overall RF protection and electromagnetic shielding •Duplex ground contact for excellent contact integrity between chassis and cable connector •Male connector's retention bar replaces plastic design with all metal version improving pull-out force •Larger solder contacts for easier termination •Optional connection to easily join pin1 to chassis ground •D-style housing provides installation compatibility with industry standard D mounting dimensions

Panel speakON 4 pole chassis, black D-size, countersunk screw holes, 3/16" flat tabs

This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984.

4 pole chassis connector, black D-size flange, countersunk thru holes, 3/16" flat tabs.

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.



Features & Benefits

RACK 19" 4U DEPTH BODY 45CM

exterior dimensions: 59cm x 51,5cm x 22cm 19" 4U seperate front and back lid depth center piece: 45cm weight: 12kg rackstrip front and back produced with 9,5mm birch plywood with phenolic coating on two sides 4 butterflies 2 flip handles 4 steel feed angle bar 2mm thick professional finishing made in Belgium all dimensions are approximate
