BAL-310515

The TITANEX® flexible rubber cable range offers exceptional performances and is designed to release you from all your constraints. Robust yet flexible, TITANEX® is easy to use and withstands the toughest of conditions, such as hard-wearing situations, extreme temperatures and most chemicals. For more than 50 years the TITANEX® cable range properties have been recognized as the best choice for all mobile and fixed installations in industrial environments such as construction sites, cranes, machines tools, factories, generators etc.

TITANEX® is also suitable for public environments and temporary events such as festivals or sports competitions, where the cable is often laid directly on the ground with no protection.

The cable may be rated 0,6/1 kV where the installation has built-in protection and for motors in lifting appliances - machine tools - etc.

When pick up at Willebroek, reels of 500 meters are possible, when you select transport, only 100 meter lengths will be sended.

The TITANEX® flexible rubber cable range offers exceptional performances and is designed to release you from all your constraints. Robust yet flexible, TITANEX® is easy to use and withstands the toughest of conditions, such as hard-wearing situations, extreme temperatures and most chemicals. For more than 50 years the TITANEX® cable range properties have been recognized as the best choice for all mobile and fixed installations in industrial environments such as construction sites, cranes, machines tools, factories, generators etc.

TITANEX® is also suitable for public environments and temporary events such as festivals or sports competitions, where the cable is often laid directly on the ground with no protection.

The cable may be rated 0,6/1 kV where the installation has built-in protection and for motors in lifting appliances - machine tools - etc.

Type: MULTIFLEX-SOFT 18 x 1,5 mm2, black
Nominal voltage: 300/500 V
Conductor: finely wired acc. to VDE 0295
Copper construction: 30 x 0,25 mm
Core insulation: PVC-mixture – shorehardness 90+/- 3
Laying of cores: Centre: PVC filler, 1. lay = 6 cores,
2. lay = 12 cores
Core colours: 17 x black with white numbers+1 green-yellow
Jacket: Soft PVC-mixture, black (RAL 9005)
Shorehardness 65 +/- 3
Presure extrusion, with talc, printing: optional
Outside diameter: approx. 16,0 ± 0,40 mm
Test voltage > 3 kV – at 50 Hz eff. for 1 minute
Insulation resistance: min. 20 MOhm x km at 20°C
Conductor resistance: max. 13,3 Ohm/km at 20°C
Operating voltage: max. 500 V
Temperature rating: static: -30 up to +80 °C
operating: - 5 up to +70 °C
This cable is flame retardant acc. DIN VDE 0482 part 265-2-1

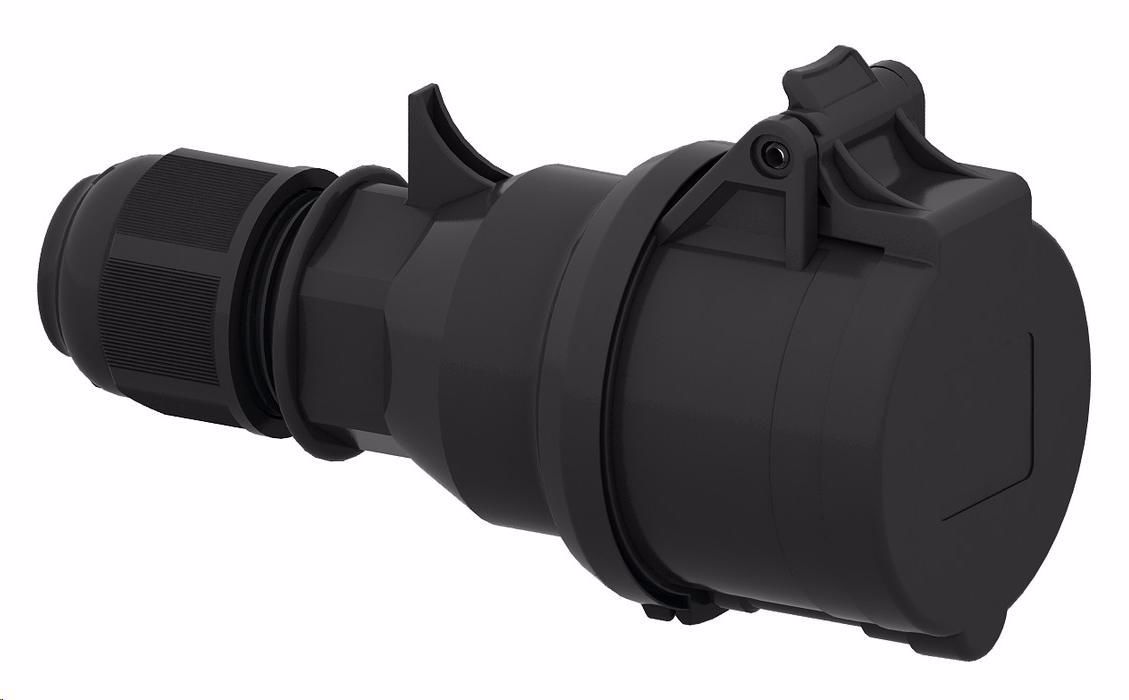

Alle Bals stekkers en koppelstekkers zijn impact-bestendig en stabiel bij extreem hoge temperaturen. Ze zijn ook duurzaam en bevatten geen PVC, cadmium of halogeen. Bals onderscheidt zich nog door gebruik te maken van nieuwe ontwikkelingen om de installatie veiliger en gemakkelijk te maken.

Zo maakt de Duitse fabrikant gebruik van Kontex contact. Hierbij is er een gedefinieerd contact dankzij veermechanisme in roestvrij staal.

Verder gebruiken ze ook een schroefloze boxveerklem aansluiting voor het bevestigen van kabels. Dit Quick-Connect systeem zorgt ervoor dat de kabel betrouwbaar, permanent en met een constante klemdruk vast zit. Het is onderhoudsvrij, tril- en schokbestendig. Daarenboven kunnen meerdere kabeldiameters probleemloos worden aangesloten en bespaart dit systeem tot 75% installatietijd.

Tenslotte is Bals ook fier op de door hun uitgevonden Multi-Grip techniek. Dit is een uniek en optimaal kabelsparend trekontlastingssysteem voorzien van 18 flexibele lamellen met onverliesbare gummidichting. Overigens kunnen verschillende kabeldiameters worden bevestigd.
