BAL-3125

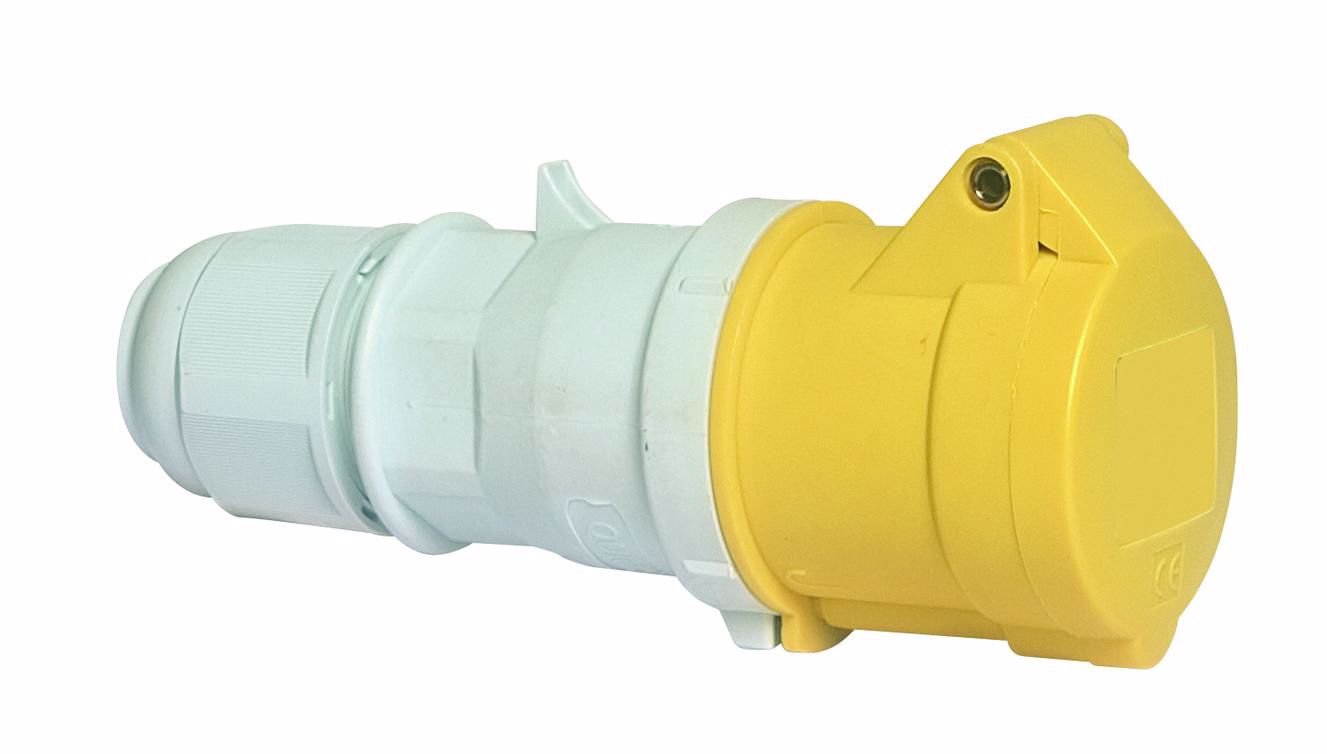

Female cable CEE 16A/110V/3P

Order number 3125 EAN/pcs 4024941031257 Product Group QUICK-CONNECT connector MULTI-GRIP cable gland Amperage 16A Poles 3p (2P+PE) Earth 'Clock' Position 4 h Voltage 100 up to 130V Frequency 50 and 60Hz Protection IP44 Color code yellow RAL 1012 Connection Design screwless spring terminals as cage clamp with Kontext-contact Max. conductor 2,5 mm²

Declaration of Conformity

Manufacturer: Bals
Availability: In stock
Products specifications
Power 110V
Current 16A
Contacts 3P
Color Yellow
Products specifications
Power 110V
Current 16A
Contacts 3P
Color Yellow
