BAL-3136

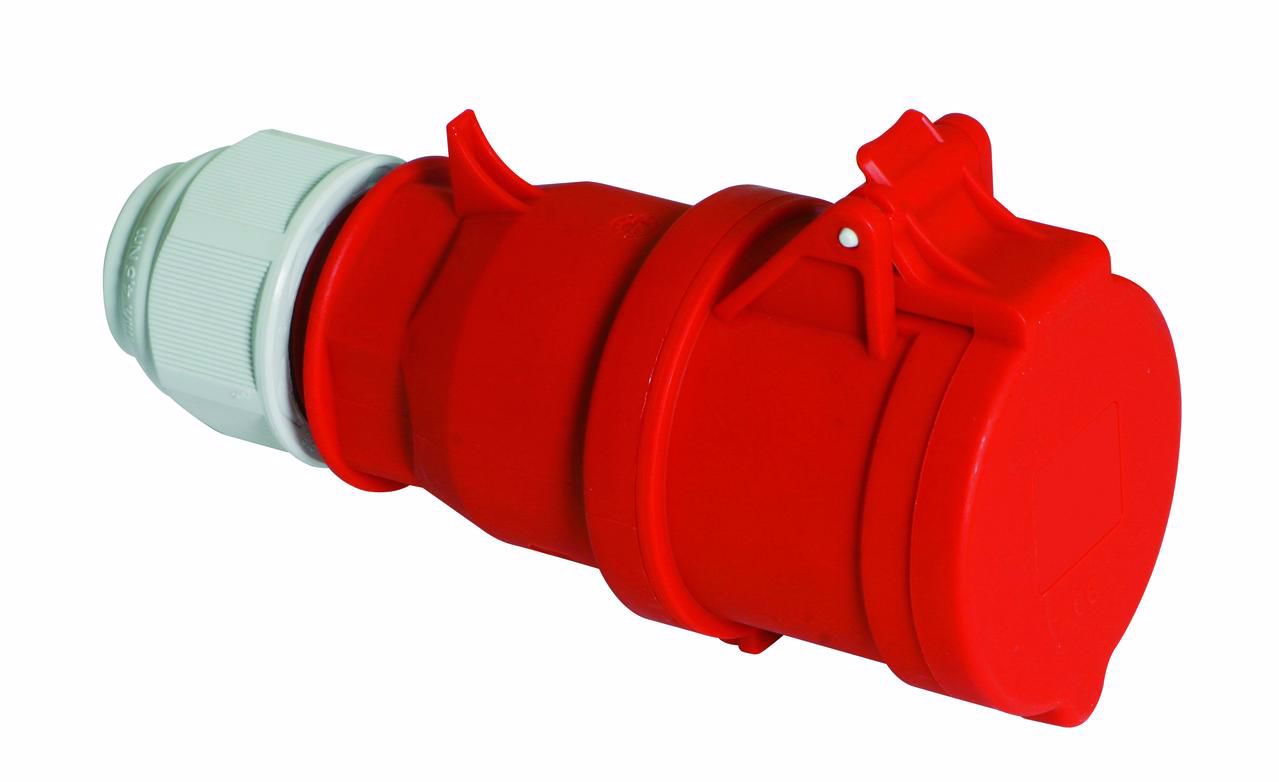

Female cable CEE 16A/380V/5P

Order number 3136 EAN/pcs 4024941031363 Product Group QUICK-CONNECT connector MULTI-GRIP cable gland Amperage 16A Poles 5p (3p+N+PE) Earth 'Clock' Position 6 h Voltage 200/346 up to 240/415V Frequency 50 and 60Hz Protection IP44 Color code red RAL 3000 Connection Design screwless spring terminals as cage clamp with Kontext-contact Max. conductor 2,5 mm²

Declaration of Conformity

Manufacturer: Bals
Availability: In stock
Products specifications
Power 380V
Current 16A
Contacts 5P
Color Red
Products specifications
Power 380V
Current 16A
Contacts 5P
Color Red
