HAR-09150006103

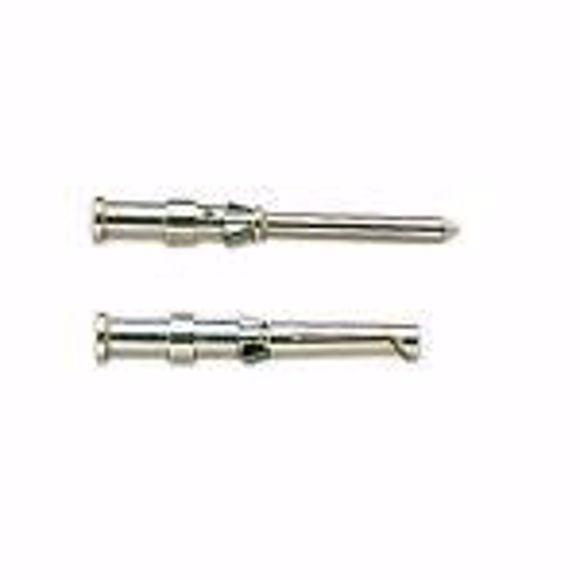

Contact Silver Male 0,5mm² HanD/DD

Artikelnummer 09 15 000 6103 Beschrijving Han D MALE CRIMP CONT. 0,5 QMM-AWG 20 Type sheet PDFPDF Identification Category Contacts Series Han D® Type of contact Crimp contact Version Gender Male Technical characteristics Conductor cross-section 0.5 mm² Conductor cross-section AWG 20 Operating current ? 10 A Contact resistance ? 3 m? Stripping length 8 mm Material properties Material (contacts) Copper alloy Surface (contacts) Silver plated Net weight 0.68 g RoHS compliant with exemption Specifications and approvals Specifications IEC 61984 EN 60664-1
Manufacturer: Harting
Availability: In stock
Products specifications
SQMM 0,5mm²
Color Silver
Products specifications
SQMM 0,5mm²
Color Silver
