HAR-09330006104

Black flexible 18*1,5mm/ Harting16E/Black hood straight

Cable : Axept Procable 18*1.5mm² Connector : Harting Han16E M+F / Black hood Top entry Accesories : Transparent Heat Shrink x 2

Procable softflex 18x1,5mm² black

Type: MULTIFLEX-SOFT 18 x 1,5 mm2, black
Nominal voltage: 300/500 V
Conductor: finely wired acc. to VDE 0295
Copper construction: 30 x 0,25 mm
Core insulation: PVC-mixture – shorehardness 90+/- 3
Laying of cores: Centre: PVC filler, 1. lay = 6 cores,
2. lay = 12 cores
Core colours: 17 x black with white numbers+1 green-yellow
Jacket: Soft PVC-mixture, black (RAL 9005)
Shorehardness 65 +/- 3
Presure extrusion, with talc, printing: optional
Outside diameter: approx. 16,0 ± 0,40 mm
Test voltage > 3 kV – at 50 Hz eff. for 1 minute
Insulation resistance: min. 20 MOhm x km at 20°C
Conductor resistance: max. 13,3 Ohm/km at 20°C
Operating voltage: max. 500 V
Temperature rating: static: -30 up to +80 °C
operating: - 5 up to +70 °C
This cable is flame retardant acc. DIN VDE 0482 part 265-2-1

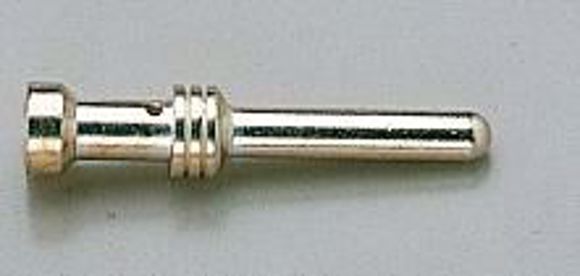

Insert Male 16E crimp (without contacts)

Artikelnummer 09 33 016 2602 Beschrijving Han 16E MALE INSERT CRIMP Type sheet PDFPDF Identification Category Inserts Series Han E® Termination method Crimp termination Version Gender Male Size 16 B Number of contacts 16 PE contact Yes Details Please order crimp contacts separately. Technical characteristics Conductor cross-section 0.14 ... 4 mm² Electrical data acc. to IEC 61984 16 A 500 V 6 kV 3 Rated current 16 A Rated voltage 500 V Rated impulse voltage 6 kV Pollution degree 3 Rated voltage acc. to UL 600 V Rated voltage acc. to CSA 600 V Limiting temperature -40 ... +125 °C Mating cycles ? 500 Material properties Material (insert) Polycarbonate Colour (insert) RAL 7032 (pebble grey) Net weight 59.8 g RoHS compliant Specifications and approvals Specifications IEC 61984 EN 60664-1 Approvals CSA-C22.2 No. 182.3 PVVA8.E318390 UL 1977 ECBT2.E235076 UL 2237 PVVA2.E318390 GL Yes
