HAR-09330162702

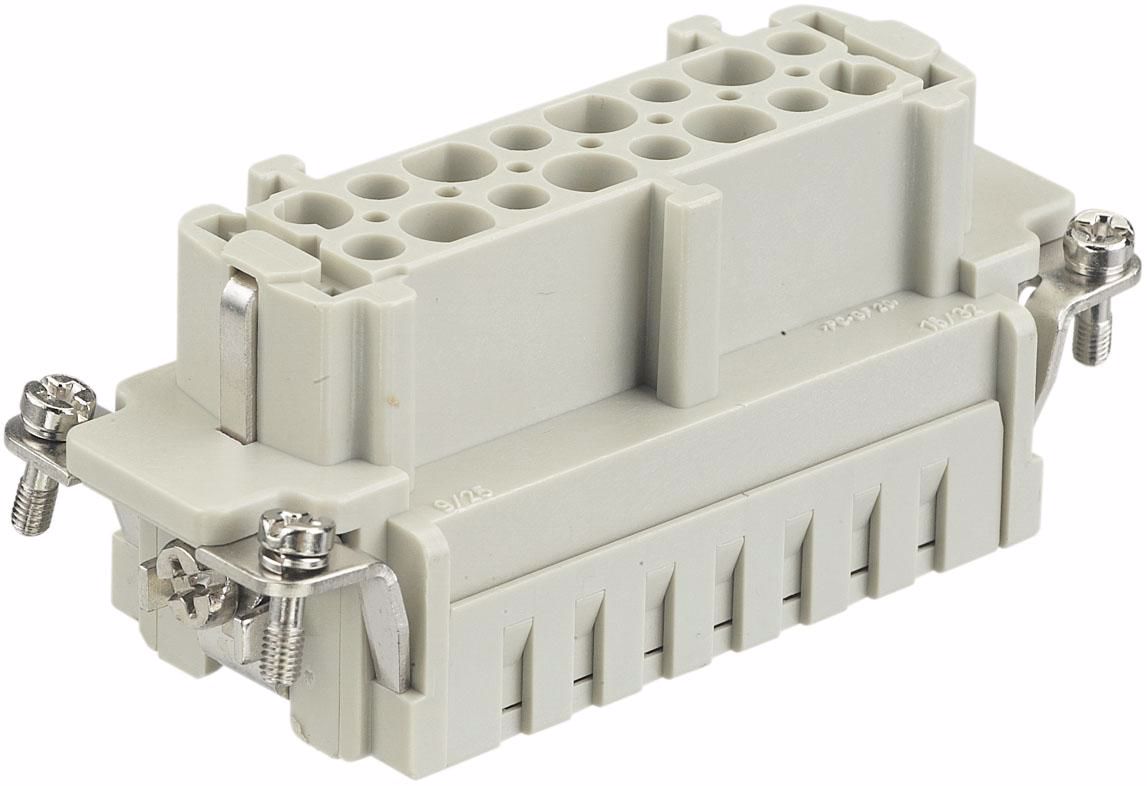

Insert Female 16E crimp (without contacts)

Artikelnummer 09 33 016 2702 Beschrijving Han 16 E-F-C Type sheet PDFPDF Identification Category Inserts Series Han E® Termination method Crimp termination Version Gender Female Size 16 B Number of contacts 16 PE contact Yes Details Please order crimp contacts separately. Technical characteristics Conductor cross-section 0.14 ... 4 mm² Electrical data acc. to IEC 61984 16 A 500 V 6 kV 3 Rated current 16 A Rated voltage 500 V Rated impulse voltage 6 kV Pollution degree 3 Rated voltage acc. to UL 600 V Rated voltage acc. to CSA 600 V Limiting temperature -40 ... +125 °C Mating cycles ? 500 Material properties Material (insert) Polycarbonate Colour (insert) RAL 7032 (pebble grey) Net weight 62.8 g RoHS compliant Specifications and approvals Specifications IEC 61984 EN 60664-1 Approvals CSA-C22.2 No. 182.3 PVVA8.E318390 UL 1977 ECBT2.E235076 UL 2237 PVVA2.E318390 GL Yes

Declaration of Conformity

Manufacturer: Harting
Availability: In stock
Products specifications
Material Plastic
Power 230V
Current 16A
Color Grey
Contacts 16P
Products specifications
Material Plastic
Power 230V
Current 16A
Color Grey
Contacts 16P
