HAR-09380062701

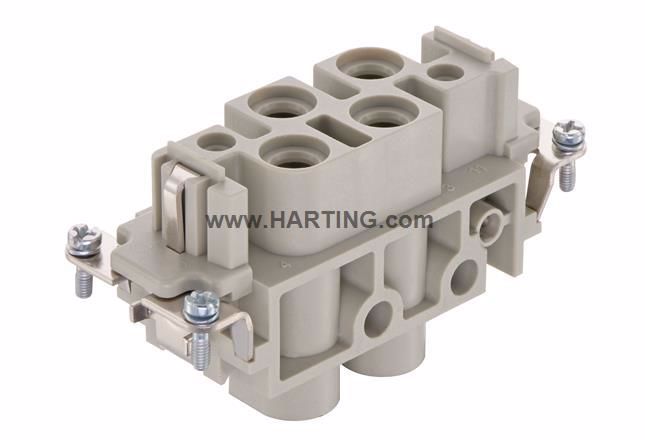

Insert Female K4/2

Artikelnummer 09 38 006 2701 Beschrijving Han K 4/2 Pin Female Insert 4 80 Amp & 2 Type sheet PDFPDF Identification Category Inserts Series Han-Com® Identification Han® K 4/2 Termination method Screw termination Version Gender Female Size 16 B Number of contacts 4 Additional contacts + 2 additional signal contacts PE contact Yes Technical characteristics Conductor cross-section 1.5 ... 16 mm² Electrical data acc. to IEC 61984 80 A 830 V 8 kV 3 Rated current 80 A Rated voltage 830 V Rated impulse voltage 8 kV Pollution degree 3 Electrical data, signal 16 A 400 V 6 kV 3 Rated current (signal) 16 A Rated voltage (signal) 400 V Rated impulse voltage (signal) 6 kV Pollution degree (signal) 3 Rated voltage acc. to UL 600 V Rated voltage acc. to UL (signal) 600 V Rated voltage acc. to CSA 300 V Rated voltage acc. to CSA (signal) 300 V Contact resistance ? 0.3 m? Contact resistance, signal area ? 1 m? Limiting temperature -40 ... +125 °C Mating cycles ? 500 Flammability acc. to UL 94 V-0 Material properties Material (insert) Polycarbonate Colour (insert) RAL 7032 (pebble grey) Material (contacts) Copper alloy Surface (contacts) Silver plated Net weight 118.4 g RoHS compliant with exemption Specifications and approvals Specifications IEC 61984 EN 60664-1 Approvals UL 1977 ECBT2.E235076 GL Yes

Declaration of Conformity
