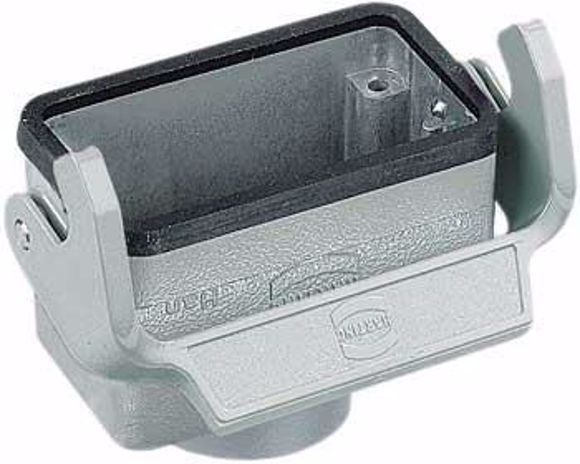

Axept. HAR-19300061750

Material	Steel
Contacts	6P
Color	Grey

Material	Steel
Contacts	6P
Color	Grey

LAP-5311.1020

Grey Plastic M20 from Lapp - Cable OD 7-13mm

SKINTOP ST-M 20x1,5 RAL 7001 SGY

SKINTOP® ST-M, increased oil-resistant plastic cable gland with variable clamping ranges, permanent vibration protection, for offshore platforms

Article designation / size: M 20 x 1,5; Clamping range ØF mm: 6 - 13; SW wrench size mm: 25; Overall length C mm: 37.0; Thread length D mm: 9; Pieces / PU: 100; Cable gland system: Single entry system; Thread type: Metric; Product Group: Cable screw gland; Material quality: Polyamide; Colour: Grey; Size: 20x1,5; Temperature range max.: 100; Temperature range min.: -40; Degree of protection (IP): IP 68 - 5 bar; Approbation: CE / CULUS / VDE / cRUus / GGVS / DNV

HAR-09330062701

Insert Female 6E with screw contacts

Artikelnummer 09 33 006 2701 Beschrijving Han E FEMALE INSERT SCREW Type sheet PDFPDF Identification Category Inserts Series Han E® Termination method Screw termination Version Gender Female Size 6 B With wire protection Yes Number of contacts 6 PE contact Yes Technical characteristics Conductor cross-section 0.75 ... 2.5 mm² Electrical data acc. to IEC 61984 16 A 500 V 6 kV 3 Rated current 16 A Rated voltage 500 V Rated impulse voltage 6 kV Pollution degree 3 Rated voltage acc. to UL 600 V Rated voltage acc. to CSA 600 V Contact resistance ? 1 m? Limiting temperature -40 ... +125 °C Tightening torque 0.5 Nm Mating cycles ? 500 Material properties Material (insert) Polycarbonate Colour (insert) RAL 7032 (pebble grey) Net weight 51.02 g RoHS compliant with exemption Specifications and approvals Specifications IEC 61984 EN 60664-1 Approvals CSA-C22.2 No. 182.3 PVVA8.E318390 UL 1977 ECBT2.E235076 UL 2237 PVVA2.E318390 GL Yes

Declaration of Conformity

HAR-09330062601

Insert Male 6E with screw contacts

Artikelnummer 09 33 006 2601 Beschrijving Han E MALE INSERT SCREW Type sheet PDFPDF Identification Category Inserts Series Han E® Termination method Screw termination Version Gender Male Size 6 B With wire protection Yes Number of contacts 6 PE contact Yes Technical characteristics Conductor cross-section 0.75 ... 2.5 mm² Electrical data acc. to IEC 61984 16 A 500 V 6 kV 3 Rated current 16 A Rated voltage 500 V Rated impulse voltage 6 kV Pollution degree 3 Rated voltage acc. to UL 600 V Rated voltage acc. to CSA 600 V Contact resistance ? 1 m? Limiting temperature -40 ... +125 °C Tightening torque 0.5 Nm Mating cycles ? 500 Material properties Material (insert) Polycarbonate Colour (insert) RAL 7032 (pebble grey) Net weight 50 g RoHS compliant with exemption Specifications and approvals Specifications IEC 61984 EN 60664-1 Approvals CSA-C22.2 No. 182.3 PVVA8.E318390 UL 1977 ECBT2.E235076 UL 2237 PVVA2.E318390 GL Yes

Declaration of Conformity

HAR-09300060301

Panel Open 6E/24DD - 1Lever-Grey

Artikelnummer 09 30 006 0301 Beschrijving Han E BULKHEAD HOUSING Type sheet PDFPDF Identification Category Hoods/Housings Series of hoods/housings Han® B Type of hood/housing Bulkhead mounted housings Type Low construction Locking type Single locking lever Han-Easy Lock® Yes Version Size 6 B Field of application Standard hoods/housings for industrial connectors Technical characteristics Limiting temperature -40 ... +125 °C Degree of protection acc. to IEC 60529 IP65 Degree of protection acc. to UL 50 12 4 4X Flammability acc. to UL 94 (locking levers) V-0 Material properties Material (hood/housing) Aluminium die-cast Surface (hood/housing) Powder-coated Colour (hood/housing) RAL 7037 (dust grey) Material (seal) NBR Material (locking) Stainless steel Polycarbonate Colour (locking) RAL 7037 (dust grey) Net weight 89.8 g RoHS compliant Specifications and approvals Approvals UL 1977 ECBT2.E235076 CSA-C22.2 No. 182.3 ECBT8.E235076 GL Yes

Declaration of Conformity
