HAR-19300101420

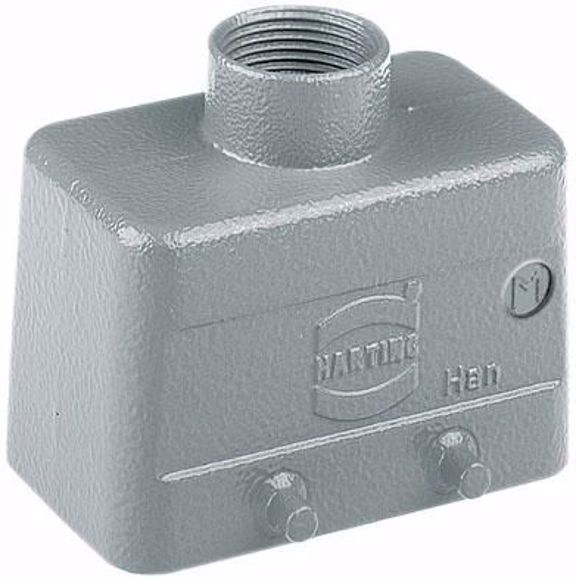

Hood 10E/42DD Top Entry - M20 - Grey

Artikelnummer 19 30 010 1420 Beschrijving Han B Hood Top Entry LC 4 Pegs M20 Type sheet PDFPDF Identification Category Hoods/Housings Series of hoods/housings Han® B Type of hood/housing Hoods Type Low construction Locking type Double locking lever Version Size 10 B Version Top entry Cable gland 1x M20 Field of application Standard hoods/housings for industrial connectors Technical characteristics Limiting temperature -40 ... +125 °C Degree of protection acc. to IEC 60529 IP65 Degree of protection acc. to UL 50 12 4 4X Material properties Material (hood/housing) Aluminium die-cast Surface (hood/housing) Powder-coated Colour (hood/housing) RAL 7037 (dust grey) Net weight 126.7 g RoHS compliant Specifications and approvals Approvals UL 1977 ECBT2.E235076 CSA-C22.2 No. 182.3 ECBT8.E235076 GL Yes

Declaration of Conformity

Manufacturer: Harting
Availability: In stock
Products specifications
Material Steel
Contacts 10P
Color Grey
Products specifications
Material Steel
Contacts 10P
Color Grey
