HAR-19300240737

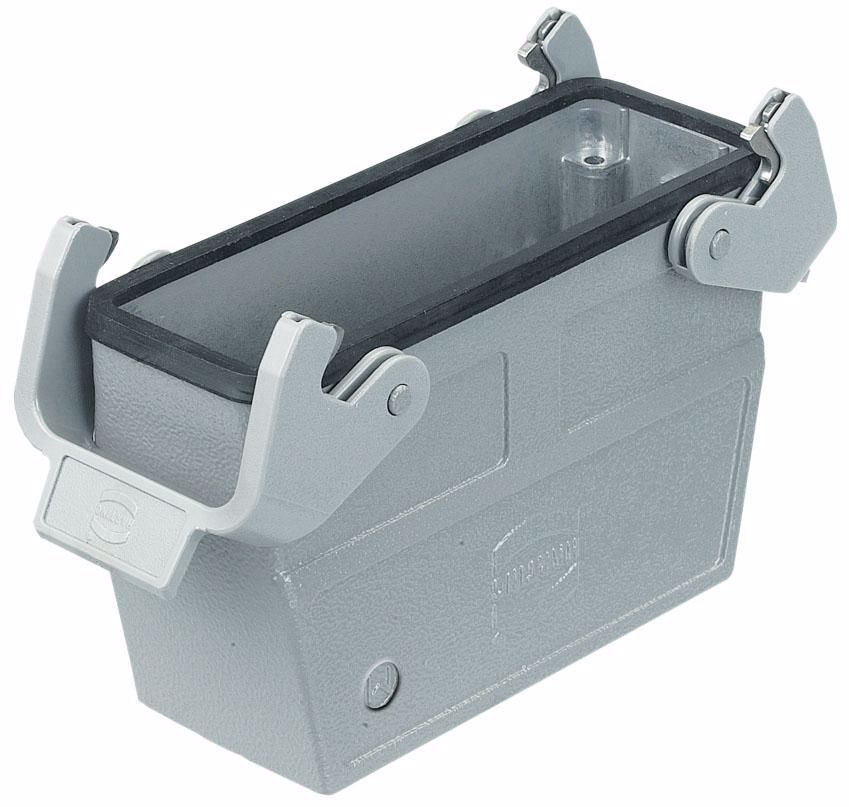

Hood 24E/64D/108DD - Top Entry - High - Levers - M32 - Grey

Artikelnummer 19 30 024 0737 Beschrijving Han B HOOD COUPLER 2 LEVERS M32 Top Type sheet PDFPDF Identification Category Hoods/Housings Series of hoods/housings Han® B Type of hood/housing Cable to cable housing Type High construction Locking type Double locking lever Han-Easy Lock® Yes Version Size 24 B Version Top entry Cable gland 1x M32 Field of application Standard hoods/housings for industrial connectors Technical characteristics Limiting temperature -40 ... +125 °C Degree of protection acc. to IEC 60529 IP65 Degree of protection acc. to UL 50 12 4 4X Flammability acc. to UL 94 (locking levers) V-0 Material properties Material (hood/housing) Aluminium die-cast Surface (hood/housing) Powder-coated Colour (hood/housing) RAL 7037 (dust grey) Material (seal) NBR Material (locking) Stainless steel Polycarbonate Colour (locking) RAL 7037 (dust grey) Net weight 317.1 g RoHS compliant Specifications and approvals Approvals UL 1977 ECBT2.E235076 CSA-C22.2 No. 182.3 ECBT8.E235076 GL Yes

Declaration of Conformity

Manufacturer: Harting
Availability: Out of stock (On request)
Products specifications
Material Steel
Color Grey
Contacts 24P
Products specifications
Material Steel
Color Grey
Contacts 24P
