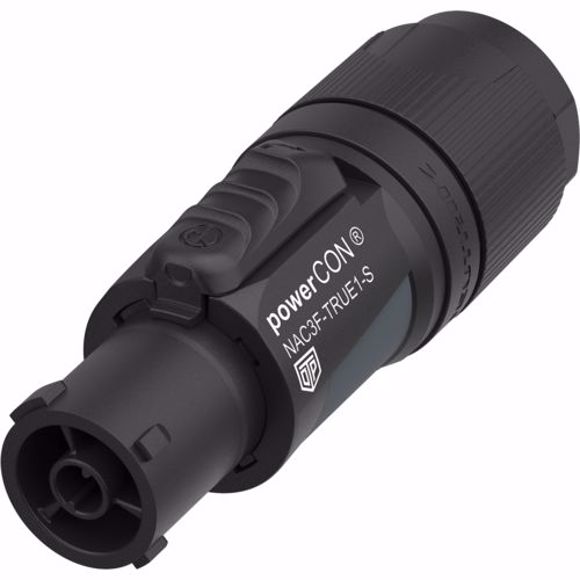

NEU-NAC3F-TRUE1-S

CODING RING XX-SERIE

Colored coding rings. Color ring can be changed without unsoldering insert

SC-Monolith 1; power: 3 x 1,50 mm²; DMX: 2 x 0,25 mm²; PVC Ø 12,40 mm - Power OD: 6,2mm; black

Technical Data: - Name: SC-Monolith 1 - Properties: Analog - Properties: Digital 110 Ω AES / EBU - Properties: OFC oxygen free copper - Application area: Mobile outdoor / indoor - Application area: Installation - Application area: Stage / live - Application area: Studio / Broadcast - Application: DMX & Power - Colour: black - Colour detailed: black - Signal transmission: symmetrical - Jacket material: PVC - Jacket Ø: 12,4 mm - Jacket Ø (power): 7 mm - Jacket Ø (AES/EBU, DMX): 4,3 mm - Number of Channels (power): 1 - Number of Channels (AES/EBU, DMX): 1 - Inner conductor (power): 3 - Inner conductor (AES/EBU, DMX): 2 - Inner conductor (power): 1,5 mm² - Inner conductor (AES/EBU, DMX): 0,25 mm² - Inner conductor Ø (power): 1,38 mm - Inner conductor Ø (AES/EBU, DMX): 0,56 mm - AWG (power): 15 - AWG (AES/EBU, DMX): 23 - Shielding (AES/EBU, DMX): Braided mesh, tin-plated - Copper strands (power): 28 - Copper strands (AES/EBU, DMX): 7 - Copper strand Ø (power): 0,25 mm - Copper strand Ø (AES/EBU, DMX): 0,20 mm - Wire insulation material (power): PVC - Conductor insulation Ø (power): 2,3 mm - Weight per 1 m: 200 g - UV-resistant: yes - Fire load per m: 0,64 kWh - Style variant: round - Shielding factor: 90 % - Packing: bulk stock - Temperature min.: -30 °C - Temperature max.: 70 °C - Width: 12,4 mm - Height: 12,4 mm - Capac. cond./cond. per 1 m (AES/EBU, DMX): 52 pF - Capac. cond./shield. per 1 m (AES/EBU, DMX): 89 pF - Surge impedance (AES/EBU, DMX): 110 Ω - Insulation resist. per 1 km (AES/EBU, DMX): 0,1 GΩ - Conductor resistance per 1 km (power): 80 Ω

Cable Male POWERCON TRUE1 TOP - 16 A Black, Outdoor Application, 6-12mm

Locking female cable connector, screw terminals

The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Titanex H-07RN-F 3G2,5mm²/m - Outside diameter: 14mm

The TITANEX® flexible rubber cable range offers exceptional performances and is designed to release you from all your constraints. Robust yet flexible, TITANEX® is easy to use and withstands the toughest of conditions, such as hard-wearing situations, extreme temperatures and most chemicals. For more than 50 years the TITANEX® cable range properties have been recognized as the best choice for all mobile and fixed installations in industrial environments such as construction sites, cranes, machines tools, factories, generators etc.

TITANEX® is also suitable for public environments and temporary events such as festivals or sports competitions, where the cable is often laid directly on the ground with no protection.



The cable may be rated 0,6/1 kV where the installation has built-in protection and for motors in lifting appliances - machine tools - etc.

When pick up at Willebroek, reels of 500 meters are possible, when you select transport, only 100 meter lengths will be sended.
