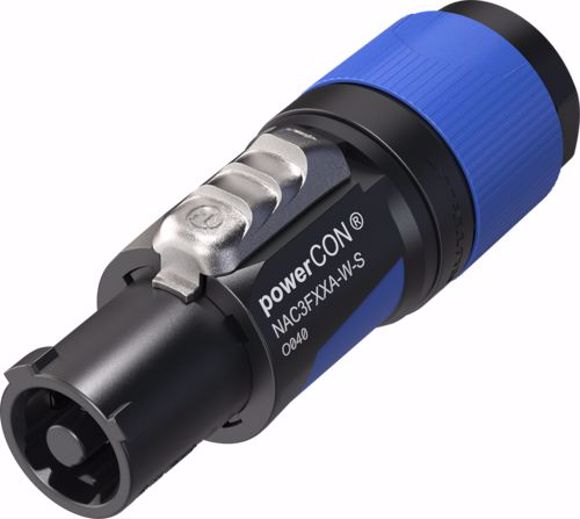

NEU-NAC3FXXA-W-S

Titanex H-07RN-F 3G2,5mm²/m - Outside diameter: 14mm

The TITANEX® flexible rubber cable range offers exceptional performances and is designed to release you from all your constraints. Robust yet flexible, TITANEX® is easy to use and withstands the toughest of conditions, such as hard-wearing situations, extreme temperatures and most chemicals. For more than 50 years the TITANEX® cable range properties have been recognized as the best choice for all mobile and fixed installations in industrial environments such as construction sites, cranes, machines tools, factories, generators etc.

TITANEX® is also suitable for public environments and temporary events such as festivals or sports competitions, where the cable is often laid directly on the ground with no protection.



The cable may be rated 0,6/1 kV where the installation has built-in protection and for motors in lifting appliances - machine tools - etc.

When pick up at Willebroek, reels of 500 meters are possible, when you select transport, only 100 meter lengths will be sended.

POWER 3x1,5 + 1 DMX PAIR - OD: 14,0mm - Power OD: 6,8mm

The SYNTAX® POWER+DIGITAL is a hybrid cable with a jacketed 3 x 1.5 mm² mains power cable combined with one or two DMX twisted pairs (7XD1F315SX or 7XD2F315SX). The digital signal pair is shielded by an aluminium/polyester foil screen and covered with a black PVC jacket. The power line is equipped with its own PVC jacket for added safety in compliance with the I.E.C. regulation. Suitable for parallel controls of light mixing boards via power line and DMX signal via digital cable. Also used for analogic audio cabinets when power is supplied. The external flame-retardant black PVC jacket is very flexible, trampling-proof, impact absorbing and water-proof. Overall diameter 7XD1F315SX: 14 mm, 7XD2F315SX: 14.5 mm. Operating temperature -30° to 70° C.

CODING RING XX-SERIE

Colored coding rings. Color ring can be changed without unsoldering insert

Cable Female 3P, Black body, silver contacts, dis-assembled,

3 pole female cable connector with black metal housing and silver contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief. Features & Benefits •Unique cage design of female contact for low contact resistance and high integrity •Female contact incorporates a solder barrier to prevent solder running into the contact mating area •Female connector with improved solid metal latch which is larger and easier to handle •Additional ground spring contacts for better shell ground continuity •Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster •Boot with polyurethane gland gives high protection to cable bending stresses •Colored rings and boots available for coding or identification •Sleek and ergonomic design - valuable and handy •Rugged zinc diecast shell, longlasting and dependable •Internal thread on shell is well protected against any damage •Branded with unique hologram - guarantees genuine and authentic Neutrik product
