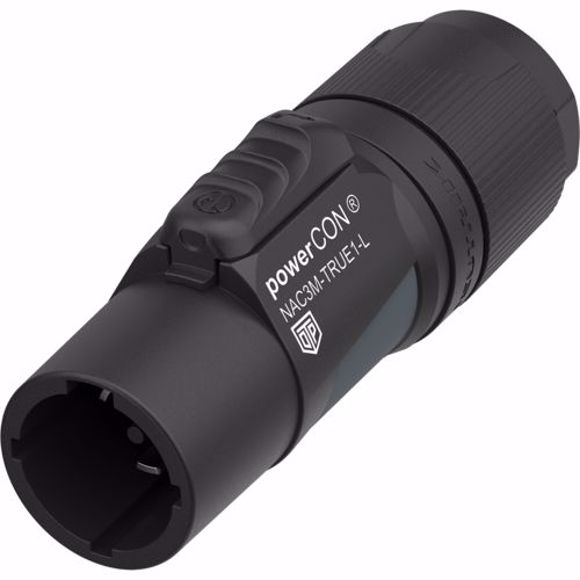

NEU-NAC3M-TRUE1-L-D

Cable Female POWERCON TRUE1 TOP - 16 A Black, Outdoor for large cable (Ø 10-16mm) (Disassambled)

NEW: Locking cable connector for big power cords with outer diameters from 10–16 mm  (0.39 – 0.63 inches) such as H07RN-F3G2.5 or SOOW 12/3 and SJOWW 12/3 . Certified to EN/UL 60320-1.

Locking cable connector, power outlet, screw terminal, IP65, 16A (USA: 20A)

The powerCON TRUE1 TOP is a lockable single phase connector with breaking capacity (CBC) for outdoor applications.

Microphone Cable Stage 22 Highflex; 2 x 0,22 mm²; PVC Ø 6,40 mm; black

Technical Data: - Properties: Analog - Properties: OFC oxygen free copper - Application area: Stage / live - Application area: Mobile outdoor / indoor - Application area: Installation - Application: Microphone Cable - Colour: black - Colour detailed: black - Signal transmission: symmetrical - Jacket material: PVC - Jacket Ø: 6,4 mm - Number of Channels (audio): 1 - Inner conductor (audio): 2 - Inner conductor (audio): 0,22 mm² - Inner conductor Ø (audio): 0,53 mm - AWG (audio): 24 - Shielding: Copper spiral shielding with 0.10 mm indiv. strands - Copper strands (audio): 28 - Copper strand Ø (audio): 0,10 mm - Weight per 1 m: 44 g - UV-resistant: yes - Fire load per m: 0,22 kWh - Style variant: round - Shielding factor: 99 % - Packing: 100 m spool - Packing: 500 m spool - Temperature min.: -20 °C - Temperature max.: 70 °C - Width: 6,4 mm - Height: 6,4 mm - Capac. cond./cond. per 1 m (audio): 68 pF - Capac. cond./shield. per 1 m (audio): 130 pF - Impedance: 100 Ω - Insulation resist. per 1 km: 1 GΩ - Insulation resist. per 1 km (audio): 1 GΩ - Conductor resistance per 1 km: 87 Ω - Shield. resistance per 1 km: 30 Ω

Cable Speakon 8P, Female, Heavy duty, Metal, Black

8-pole female cable connector, black-chrome metal housing, solder The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing. Features & Benefits •Extremely robust metal housing designed for harsh and demanding environment •Ideal product for touring applications and harsh environments •Current rating 40 Amp continuous, 50 Amp audio signal with 50% duty cycle •Uses precise “Quick Lock” system •Mates with all currently available speakON products

Cable Speakon 4P, Female, Heavy duty, Metal, Black

4 pole female cable connector, black-chrome metal housing, chuck type strain relief The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing. Features & Benefits •Current rating 40 A continuous, 50 A audio signal with 50% duty cycle •Robust and durable all metal housing •Sealing ring provides weatherproof IP54 rating in mated condition •Reinforced metal quick lock system for ease and precise locking •Extra large solder contacts for up to 6mm² (AWG10) wires •Mate with all available speakON products
