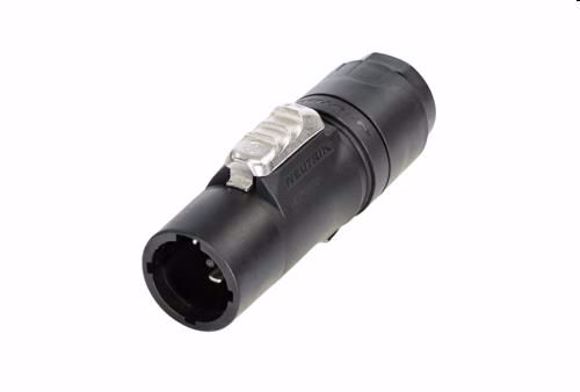

NEU-NAC3MX-W-TOP-L

Cable Male POWERCON TRUE1 TOP - 16 A Black, Outdoor Application for large cable (Ø 10-16mm)

NEW: Locking cable connector for big power cords with outer diameters from 10–16 mm  (0.39 – 0.63 inches) such as H07RN-F3G2.5 or SOOW 12/3 and SJOWW 12/3 . Certified to EN/UL 60320-1.

Locking cable connector, power outlet, screw terminal, IP65, 16A (USA: 20A)

The powerCON TRUE1 TOP is a lockable single phase connector with breaking capacity (CBC) for outdoor applications.

Manufacturer: Neutrik
Availability: In stock
Products specifications
Current 16A
Products specifications
Current 16A
