NEU-NBNC75BZV14

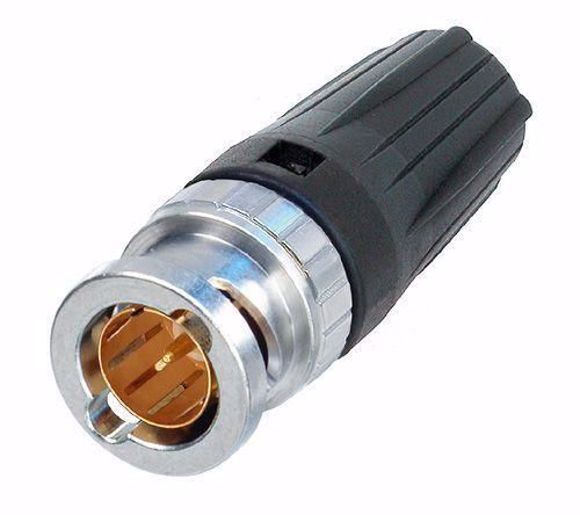

RearTWIST HD BNC Cable Connectors for Belden 1794A

The rearTWIST HD BNC cable connector offers a true 75 ? design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding. Suitable cable: Belden 1794A Crimp size: Pin: 1.6 mm (square) or 1.75 mm (hex) Shield: 8.23 mm (hex) Features & Benefits •“rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507) •Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front. •True 75 ? design meets the stringent HDTV / DVD requirements •Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles! •Snug-fit center pin insert provides tactile feedback •Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies •Excellent cable protection and retention •Precise Swiss machined brass parts for outstanding durability •Accessories include color coded boots in 10 standard colors, crimp tool and dies
