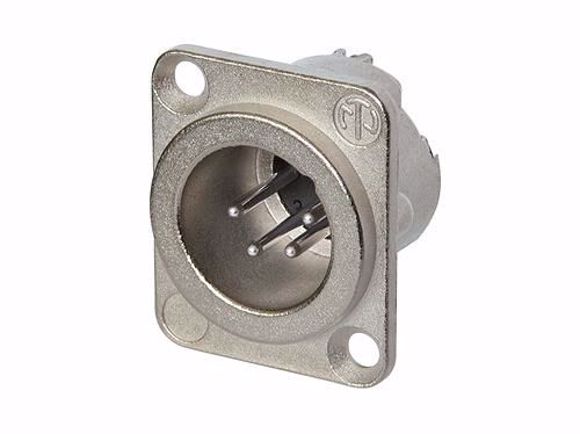

NEU-NC4MD-LX

Panel 4 pole Female, Nickel housing, silver contacts, D-size

4 pole female receptacle, solder cups, Nickel housing, silver contacts The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. Features & Benefits •All metal housing offers best overall RF protection and electromagnetic shielding •Duplex ground contact for excellent contact integrity between chassis and cable connector •Female contact incorporates a solder barrier to prevent solder running into the contact mating area •Larger solder contacts for easier termination •Optional connection to easily join pin1 to chassis ground •D-style housing provides installation compatibility with industry standard D mounting dimensions

Cable Female 5P, Black body, silver contacts

5 pole female cable connector with black metal housing and silver contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief. Features & Benefits •Unique cage design of female contact for low contact resistance and high integrity •Female contact incorporates a solder barrier to prevent solder running into the contact mating area •Female connector with improved solid metal latch which is larger and easier to handle •Additional ground spring contacts for better shell ground continuity •Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster •Boot with polyurethane gland gives high protection to cable bending stresses •Colored rings and boots available for coding or identification •Sleek and ergonomic design - valuable and handy •Rugged zinc diecast shell, longlasting and dependable •Internal thread on shell is well protected against any damage •Branded with unique hologram - guarantees genuine and authentic Neutrik product

Cable Male 5P, Black body, silver contacts

5 pole male cable connector with black metal housing and silver contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief. Features & Benefits Male connector with improved locking recess without "window", more stringent housing increases durability Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster Boot with polyurethane gland gives high protection to cable bending stresses Colored rings and boots available for coding or identification Sleek and ergonomic design - valuable and handy Rugged zinc diecast shell, longlasting and dependable Internal thread on shell is well protected against any damage Branded with unique hologram - guarantees genuine and authentic Neutrik product

DMX Binary 434 DMX512; 4 x 0,34 mm²; PVC Ø 7,00 mm; black

Technical Data: - Properties: Digital 110 Ω AES / EBU - Properties: OFC oxygen free copper - Properties: Analog - Application area: Stage / live - Application area: Mobile outdoor / indoor - Application area: Studio / Broadcast - Application area: Installation - Application area: ELA 100 V - Application: DMX - Colour: black - Colour detailed: black - Signal transmission: symmetrical - Jacket material: PVC - Jacket Ø: 7 mm - Number of Channels (AES/EBU, DMX): 1 - Inner conductor (AES/EBU, DMX): 4 - Inner conductor (AES/EBU, DMX): 0,34 mm² - Inner conductor Ø (AES/EBU, DMX): 0,66 mm - AWG (AES/EBU, DMX): 22 - Shielding: Copper-cross mesh, tined + AL / PT foil - Copper strands (AES/EBU, DMX): 7 - Copper strand Ø (AES/EBU, DMX): 0,25 mm - Conductor insulation material: PE - Conductor insulation Ø: 1,7 mm - Weight per 1 m: 65 g - UV-resistant: yes - Fire load per m: 0,22 kWh - Style variant: round - Shielding factor: 100 % - Packing: 100 m spool - Temperature min.: -25 °C - Temperature max.: 70 °C - Width: 7 mm - Height: 7 mm - Capac. cond./cond. per 1 m (AES/EBU, DMX): 58 pF - Capac. cond./shield. per 1 m (AES/EBU, DMX): 100 pF - Impedance: 110 Ω - Insulation resist. per 1 km: 5 GΩ - Insulation resist. per 1 km (AES/EBU, DMX): 5 GΩ - Conductor resistance per 1 km: 53 Ω - Shield. resistance per 1 km: 15 Ω
