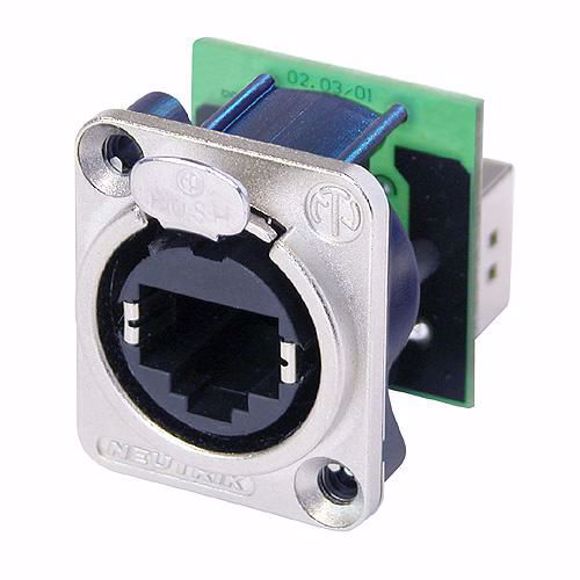

NEU-NE8FDP

Titanex H-07RN-F 3G1,5mm²/m - Outside diameter: 11,9mm

The TITANEX® flexible rubber cable range offers exceptional performances and is designed to release you from all your constraints. Robust yet flexible, TITANEX® is easy to use and withstands the toughest of conditions, such as hard-wearing situations, extreme temperatures and most chemicals. For more than 50 years the TITANEX® cable range properties have been recognized as the best choice for all mobile and fixed installations in industrial environments such as construction sites, cranes, machines tools, factories, generators etc.

TITANEX® is also suitable for public environments and temporary events such as festivals or sports competitions, where the cable is often laid directly on the ground with no protection.



The cable may be rated 0,6/1 kV where the installation has built-in protection and for motors in lifting appliances - machine tools - etc.

When pick up at Willebroek, reels of 500 meters are possible, when you select transport, only 100 meter lengths will be sended.

Contact Silver Male 0,14-0,37mm² HanD/DD

Artikelnummer 09 15 000 6104 Beschrijving Han D MALE CRIMP CONT.0.14-0.3 Type sheet PDFPDF Identification Category Contacts Series Han D® Type of contact Crimp contact Version Gender Male Technical characteristics Conductor cross-section 0.14 ... 0.37 mm² Conductor cross-section AWG 26 ... AWG 22 Operating current ? 10 A Contact resistance ? 3 m? Stripping length 8 mm Material properties Material (contacts) Copper alloy Surface (contacts) Silver plated Net weight 0.71 g RoHS compliant with exemption Specifications and approvals Specifications IEC 61984 EN 60664-1

Declaration of Conformity

Contact Silver Female 0,14-0,37mm² HanD/DD

Artikelnummer 09 15 000 6204 Beschrijving Han D FEMALE CRIMP CONT..14-.3 Type sheet PDFPDF Identification Category Contacts Series Han D® Type of contact Crimp contact Version Gender Female Technical characteristics Conductor cross-section 0.14 ... 0.37 mm² Conductor cross-section AWG 26 ... AWG 22 Operating current ? 10 A Contact resistance ? 3 m? Stripping length 8 mm Material properties Material (contacts) Copper alloy Surface (contacts) Silver plated Net weight 0.73 g RoHS compliant with exemption Specifications and approvals Specifications IEC 61984 EN 60664-1

Declaration of Conformity

Cable Female 3P, Silver body, silver contacts, dis-assembled

3 pole female cable connector with Nickel housing and silver contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief. Features & Benefits •Unique cage design of female contact for low contact resistance and high integrity •Female contact incorporates a solder barrier to prevent solder running into the contact mating area •Female connector with improved solid metal latch which is larger and easier to handle •Additional ground spring contacts for better shell ground continuity •Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster •Boot with polyurethane gland gives high protection to cable bending stresses •Colored rings and boots available for coding or identification •Sleek and ergonomic design - valuable and handy •Rugged zinc diecast shell, longlasting and dependable •Internal thread on shell is well protected against any damage •Branded with unique hologram - guarantees genuine and authentic Neutrik product
