NEU-NE8FDY-C6-B

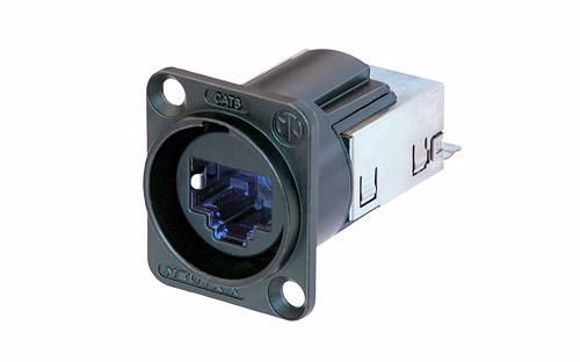

D-shape CAT6 panel connector with black Chrome housing

The etherCON CAT6 D-shape panel connectors with black metal housing and secure latching system offer a tool-free and gas-tight IDC termination, which makes cable assembly easy and fast. Attention! Intermates ONLY with NE8MC6-MO, NKE6S-* and generic RJ45 connectors. Not compatible with the etherCON cable connector carriers NE8MC* and the CAT6A cable connectors NE8MX6*. Features & Benefits •CAT6 compliant - data rate up to 10 GBit/s •CAT6 performance - fast data transmission and high bandwidth applications •CAT6 specifications according TIA / EIA 568B, ISO / IEC 11801, EN 50173 •IP65 - Dust and waterproof in mated condition •Shielded system - high noise immunity and EMI protection •Push Pull mating - secure and proven locking system •Ground lead jumper on panel connector with selectable grounding option •Gas-tight IDC termination without tool

Manufacturer: Neutrik

Availability: In stock

Specifications

Products specifications

Color	Black
Contacts	8P

Products specifications

Color	Black
Contacts	8P
