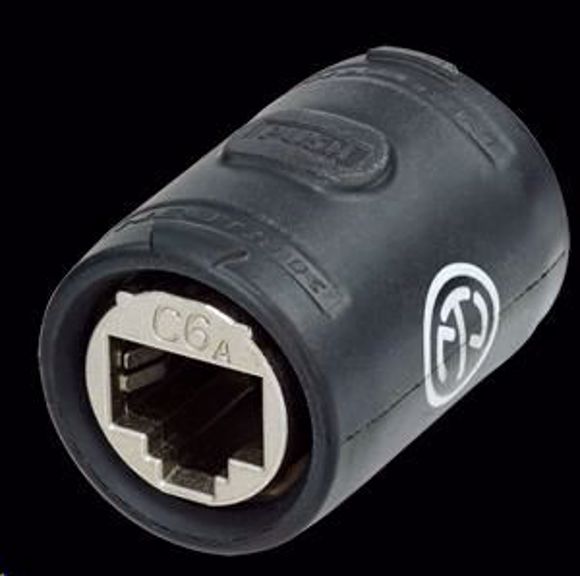

NEU-NE8FFX6-W

Tactical flex F/STP CAT6a

Outer diameter 9mm
br Catsnake® Category 6A Patch S/FTP, 4-Unbonded Pairs, 24AWG Stranded Bare Copper Conductors, Foamed PE Insulation, Individually Shielded Pairs, Overall Tinned Copper Braid, PVC Inner and Outer Jackets

Declaration of Conformity

CODING RING XX-SERIE

Colored coding rings. Color ring can be changed without unsoldering insert

Microphone Cable Stage 22 Highflex; 2 x 0,22 mm²; PVC Ø 6,40 mm; black

Technical Data: - Properties: Analog - Properties: OFC oxygen free copper - Application area: Stage / live - Application area: Mobile outdoor / indoor - Application area: Installation - Application: Microphone Cable - Colour: black - Colour detailed: black - Signal transmission: symmetrical - Jacket material: PVC - Jacket Ø: 6,4 mm - Number of Channels (audio): 1 - Inner conductor (audio): 2 - Inner conductor (audio): 0,22 mm² - Inner conductor Ø (audio): 0,53 mm - AWG (audio): 24 - Shielding: Copper spiral shielding with 0.10 mm indiv. strands - Copper strands (audio): 28 - Copper strand Ø (audio): 0,10 mm - Weight per 1 m: 44 g - UV-resistant: yes - Fire load per m: 0,22 kWh - Style variant: round - Shielding factor: 99 % - Packing: 100 m spool - Packing: 500 m spool - Temperature min.: -20 °C - Temperature max.: 70 °C - Width: 6,4 mm - Height: 6,4 mm - Capac. cond./cond. per 1 m (audio): 68 pF - Capac. cond./shield. per 1 m (audio): 130 pF - Impedance: 100 Ω - Insulation resist. per 1 km: 1 GΩ - Insulation resist. per 1 km (audio): 1 GΩ - Conductor resistance per 1 km: 87 Ω - Shield. resistance per 1 km: 30 Ω

etherCON CAT6_A cable connector self-termination, nickel plating

etherCON CAT6A cable connector self-termination, for insulation diameter > 1.1 mm, nickel plating The set NE8MX6 consists of a cable plug carrier offering a robust metal shell, proven Neutrik chuck-type strain relief and a CAT6A compliant RJ45 plug. The set is suitable for a cable diameter range of 7 mm to 9.5 mm and wire gauge of AWG26/1 - AWG22/1 (solid) or AWG27/7 - AWG22/7 (stranded). Attention! Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B. Features & Benefits •Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2 •PoE+ compliant according to 802.3at Type2 •IP65 protected when mated with NE8FDX-P6-W or NE8FDX-Y6-W •Rugged latch lock system million fold proven •Intermateable with the existing etherCON CAT5 range •Unique Neutrik chuck-type strain relief
