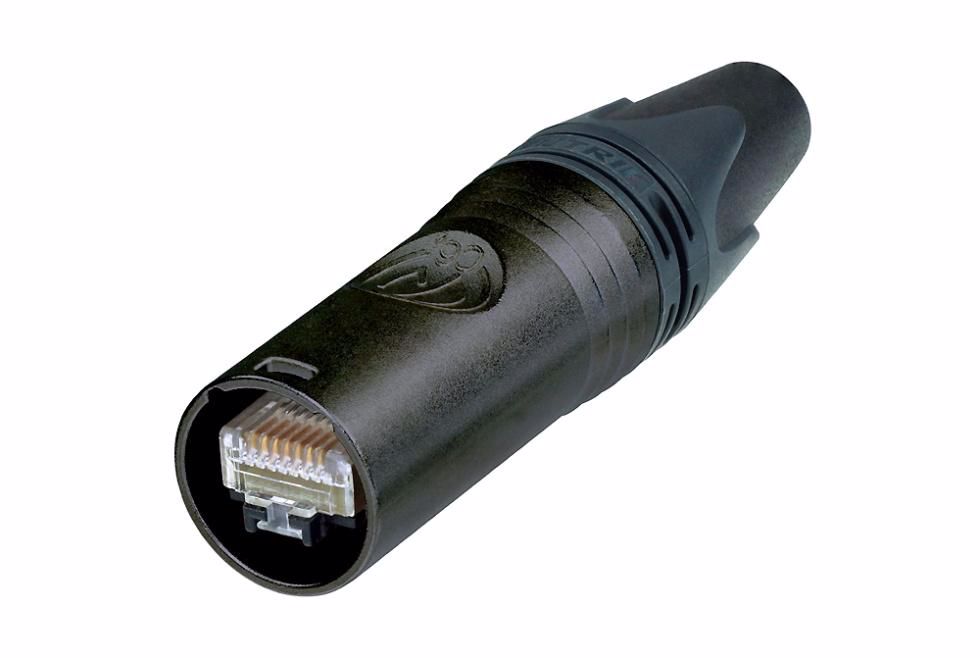

NEU-NE8MX6-B

etherCON CAT6A cable connector self-termination, black plating

etherCON CAT6A cable connector self-termination, for insulation diameter > 1.1 mm, black plating The set NE8MX6-B includes a cable plug carrier offering a robust metal shell, proven Neutrik chuck-type strain relief and a CAT6A RJ45 plug. The set is suitable for a cable diameter range of 7 mm to 9.5 mm and gauge of AWG26/1 - AWG22/1 (solid) or AWG27/7 - AWG22/7 (stranded). Attention! Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B. Features & Benefits •Ruggedized connector with CAT6A component compliance according to ISO / IEC 11801 and TIA / EIA 568-C.2 •PoE+ compliant according to 802.3at Type2 •IP 65 protected when mated with NE8FDX-P6-W or NE8FDX-Y6-W •Rugged latch lock system million fold proven •Intermateable with the existing etherCON CAT5 range •Unique Neutrik chuck-type strain relief
Manufacturer: Neutrik
Availability: In stock
Products specifications
Color Black
Contacts 8P
Products specifications
Color Black
Contacts 8P
