NEU-NJ3FP6C-BAG

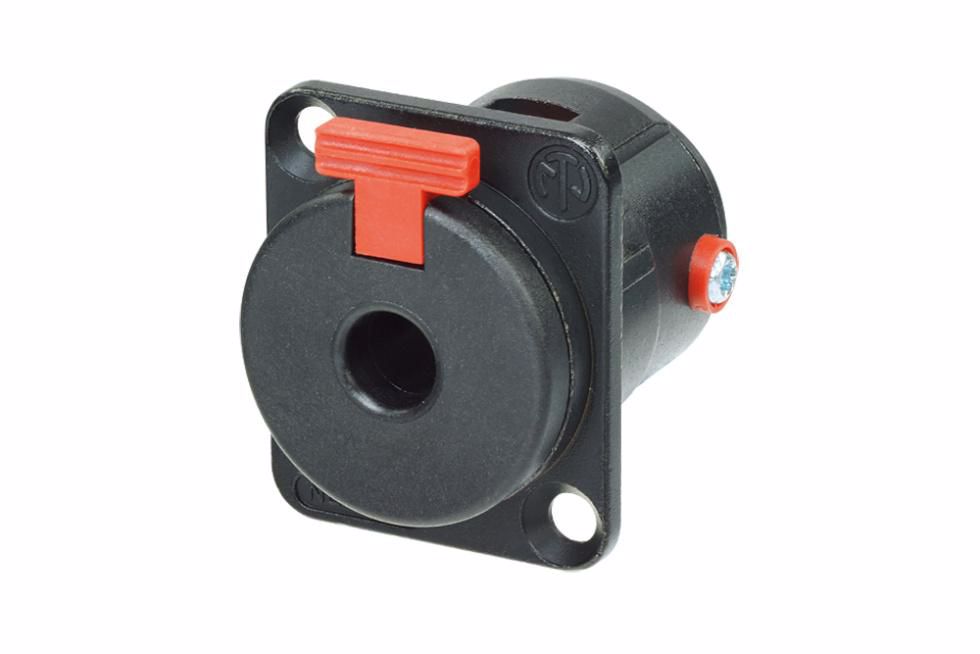

Locking 1/4" phone jack, D-size shell, black metal housing and silver contacts

Locking 1/4" phone jack, D-size shell, black metal housing and silver contacts The 3 pole phone jack panel mount version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab. Standard D size front panel appearance. Selectable grounding options. Features & Benefits •Securely locking chassis jack •Mates with all mono and stereo plugs specified acc. EIA RS-453 (A-gauge) •Selectable grounding options: standard isolated, to get a sleeve/panel connection red isolator on lateral screw must be removed •Dimensionally compatible with D Series (31 x 26 mm) •Solder terminals
Manufacturer: Neutrik
Availability: In stock
