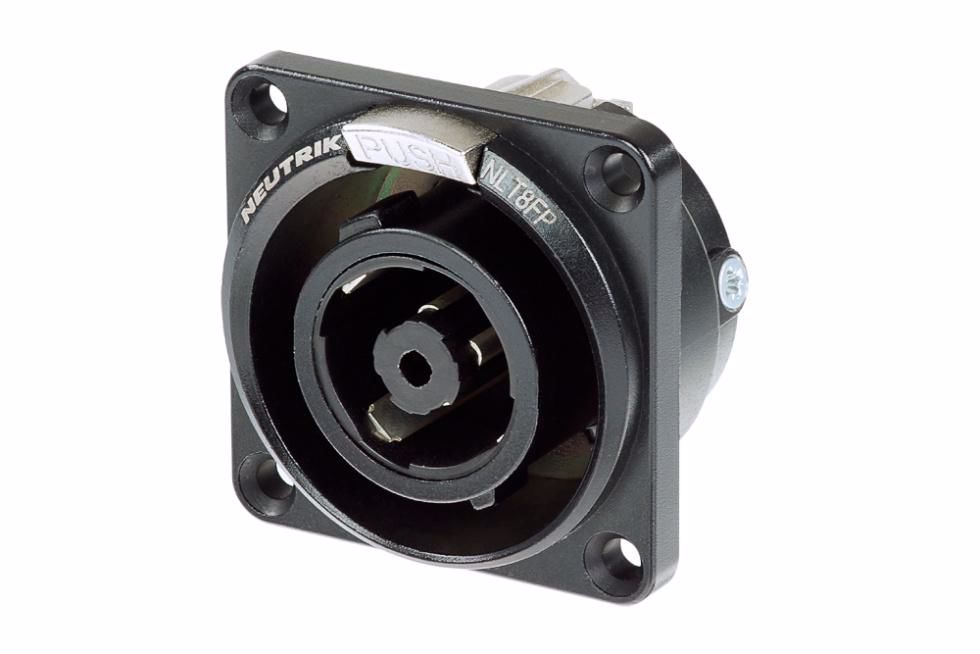

NEU-NLT8FPXX-BAG

M3 mounting frame

The fixing plate with M3 thread offers efficient and ease mounting of all D-sized chassis connectors by M3 screws.

AES/EBU 12 PAIRS - OD: 17,4mm

The SYNTAX DIGITAL MULTIPAIR cables are developed for those applications (either in fixed installations or outdoors) where the management of digital equipment are a very important part of the whole system. The cables have been designed in accordance with the standard AES/EBU specifications, 110 ohm impedance and a very low capacitance thanks to the use of a special gas injected foam for the conductors’ insulation. The particular internal arrangement solves the problems of twisting and knotting of the cores while keeping the right flexibility. The pairs are twisted and individually shielded by aluminium foil with drain wire. The external jacket of each pair is individually numbered. The overall external jacket is made with a high tech PVC polymer, very flexible and impact absorbing, slipping over rough surfaces and granting suppleness even with low temperatures.

POWER 3x1,5 + 1 DMX PAIR - OD: 14,0mm - Power OD: 6,8mm

The SYNTAX® POWER+DIGITAL is a hybrid cable with a jacketed 3 x 1.5 mm² mains power cable combined with one or two DMX twisted pairs (7XD1F315SX or 7XD2F315SX). The digital signal pair is shielded by an aluminium/polyester foil screen and covered with a black PVC jacket. The power line is equipped with its own PVC jacket for added safety in compliance with the I.E.C. regulation. Suitable for parallel controls of light mixing boards via power line and DMX signal via digital cable. Also used for analogic audio cabinets when power is supplied. The external flame-retardant black PVC jacket is very flexible, trampling-proof, impact absorbing and water-proof. Overall diameter 7XD1F315SX: 14 mm, 7XD2F315SX: 14.5 mm. Operating temperature -30° to 70° C.

CODING RING XX-SERIE

Colored coding rings. Color ring can be changed without unsoldering insert
