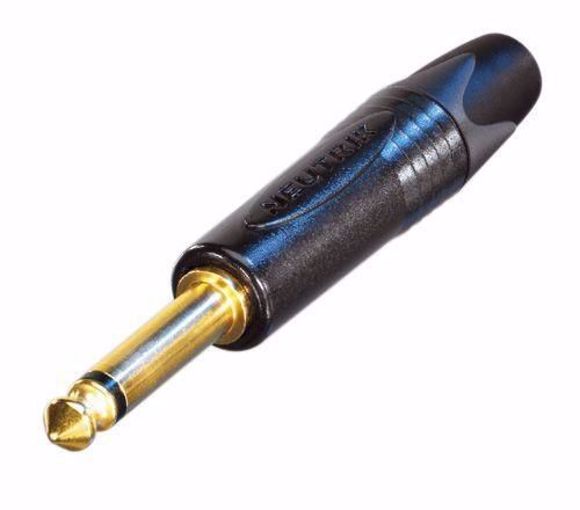

NEU-NP2X-B

3 pole 1/4" professional phone plug, gold contacts, black shell

3 pole 1/4" professional phone plug, gold contacts, black shell The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch). The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip. The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks. Features & Benefits •Extra slim 1/4" plug for highest packing density •Robust diecast shell in stylish design •Proven chuck type strain relief for reliable cable retention •Sleek design for best handling convenience •Precision machined one-piece contacts - avoid hook up of tip contact

Bushing NP*X

Colored boots for PX-Series. Color coding: 1 - Brown 2 - Red 3 - Orange 4 - Yellow 5 - Green 6 - Blue 7 - Violet 8 - Grey 9 - White

Panel CAT5e feedthrough, D-shape, Black housing

RJ45 feedthrough receptacle, black D-shape metal flange with the latch lock, mounting screws included The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry. The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market. Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables. Features & Benefits •Accommodates NE8MC* or any standard RJ45 plug •Approved latch lock system •Mountable from the front or rear of the panel •Complies with Cat 5e according to TIA / EIA 568B and ISO / IEC 11801 standard

Cable connector carrier consisting of black chromium shell, fixing disk, chuck and boot

Cable connector carrier consists of a black chromium shell, fixing disk, chuck and boot. The boot (same as X-Series) is suitable for cable diameters from 3.5 - 8 mm. For non preassembled cables only. Cable connector carrier does not include a RJ45 plug. The etherCON cable connector carrier upgrades a conventional RJ45 connector to an extremely robust lockable solution. Attention! Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B. Features & Benefits •The RJ45 system for harsh and demanding environment •Cable connector carrier accepts the most common RJ45 plugs (see list at downloads) •Rugged diecast shell and unique chuck type strain relief •Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ 45 connectors •O-ring gasket to achieve IP54 water protection in combination with SE8FD sealing kit •Accessories include color coded boots in 9 standard colors
