OMN-OCDV6L

Patch cable SC-Isopod SO-F22; 2 x 0,22 mm²; PVC Ø 3,30 mm; black

Technical Data: - Properties: Analog - Properties: OFC oxygen free copper - Application area: Installation - Application: Patch cable - Colour: black - Colour detailed: black - Signal transmission: symmetrical - Jacket material: PVC - Jacket Ø: 3,3 mm - Number of Channels (audio): 1 - Inner conductor (audio): 2 - Inner conductor (audio): 0,22 mm² - Inner conductor Ø (audio): 0,53 mm - AWG (audio): 24 - Shielding: AL / PT foil + AL / PT foil + filler strand, tin-plated - Copper strands (audio): 7 - Copper strand Ø (audio): 0,20 mm - Conductor insulation material: PE - Conductor insulation Ø: 1,12 mm - Weight per 1 m: 16 g - UV-resistant: yes - Fire load per m: 0,05 kWh - Style variant: round - Shielding factor: 100 % - Packing: 200 m spool - Temperature min.: -25 °C - Temperature max.: 70 °C - Width: 3,3 mm - Height: 3,3 mm - Capac. cond./cond. per 1 m (audio): 74 pF - Capac. cond./shield. per 1 m (audio): 143 pF - Insulation resist. per 1 km: 0,2 GΩ - Insulation resist. per 1 km (audio): 0,2 GΩ - Conductor resistance per 1 km: 88 Ω - Shield. resistance per 1 km: 75 Ω Only available on full 200m lenghts

Power Strip - 4 Channel - 3G2,5 - STRAIGHT - PENAARDE (BE-FR earth)

Features

• comes with 8 cm transparent shrink sleeve (not shrunk) for custom labelling
• child protection
• socket type: French (type E)

Specifications

• number of sockets: 4
• cable: H05VV-F 3G1.5
• cable length: 1.5 m
• colour: black
• max. power: 3500 W
• voltage: 230 VAC 16 A

Cable Female 3P, Black body, gold contacts

3 pole female cable connector with black metal housing and gold contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief. Features & Benefits Unique cage design of female contact for low contact resistance and high integrity Female contact incorporates a solder barrier to prevent solder running into the contact mating area Female connector with improved solid metal latch which is larger and easier to handle Additional ground spring contacts for better shell ground continuity Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster Boot with polyurethane gland gives high protection to cable bending stresses Colored rings and boots available for coding or identification Sleek and ergonomic design - valuable and handy Rugged zinc diecast shell, longlasting and dependable Internal thread on shell is well protected against any damage Branded with unique hologram - guarantees genuine and authentic Neutrik product

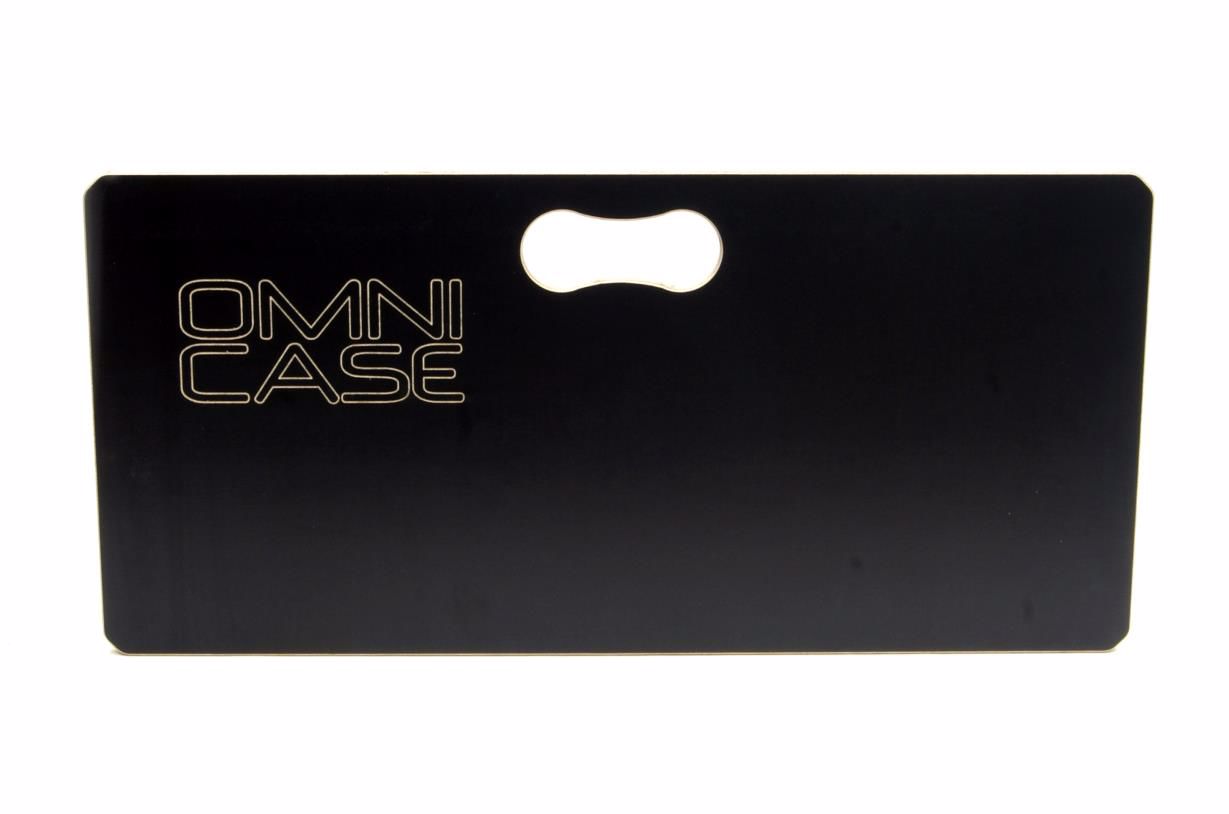

TRAY FOR OC866D, OC868D, OC1266D AND OC1268D

• interior dimensions: 500mm x 350mm x 150mm • exterior dimensions: 550mm x 350mm x 160mm • weight: 3kg • produced with 9,5mm birch plywood with phenolic coating on two sides • fits OC866D, OC868D, OC1266D and OC1268D • professional finishing • made in Belgium • all dimensions are approximate
