PRM-APC/1.5

DIGITAL AES/EBU - DMX

SYNTAX® single pair DIGITAL AES/EBU-DMX CABLE, (standard AES/EBU and DMX use specifications) is manufactured with reliably consistent impedance and features a special polymer sheath for low capacitance. To ensure a high protection level from EMI/RFI noise, the shield is made up of two different screens:
? the first is a high-density spiral tinned copper; ? the second is a aluminium/polyester foil.
The drain wire between the two screens makes connection easier. Black or Blue PVC flame-retardant external jacket, trampling-proof, impact absorbing and flexible for longer lifespan.

Titanex H-07RN-F 3G2,5mm²/m - Outside diameter: 14mm

The TITANEX® flexible rubber cable range offers exceptional performances and is designed to release you from all your constraints. Robust yet flexible, TITANEX® is easy to use and withstands the toughest of conditions, such as hard-wearing situations, extreme temperatures and most chemicals. For more than 50 years the TITANEX® cable range properties have been recognized as the best choice for all mobile and fixed installations in industrial environments such as construction sites, cranes, machines tools, factories, generators etc.

TITANEX® is also suitable for public environments and temporary events such as festivals or sports competitions, where the cable is often laid directly on the ground with no protection.



The cable may be rated 0,6/1 kV where the installation has built-in protection and for motors in lifting appliances - machine tools - etc.

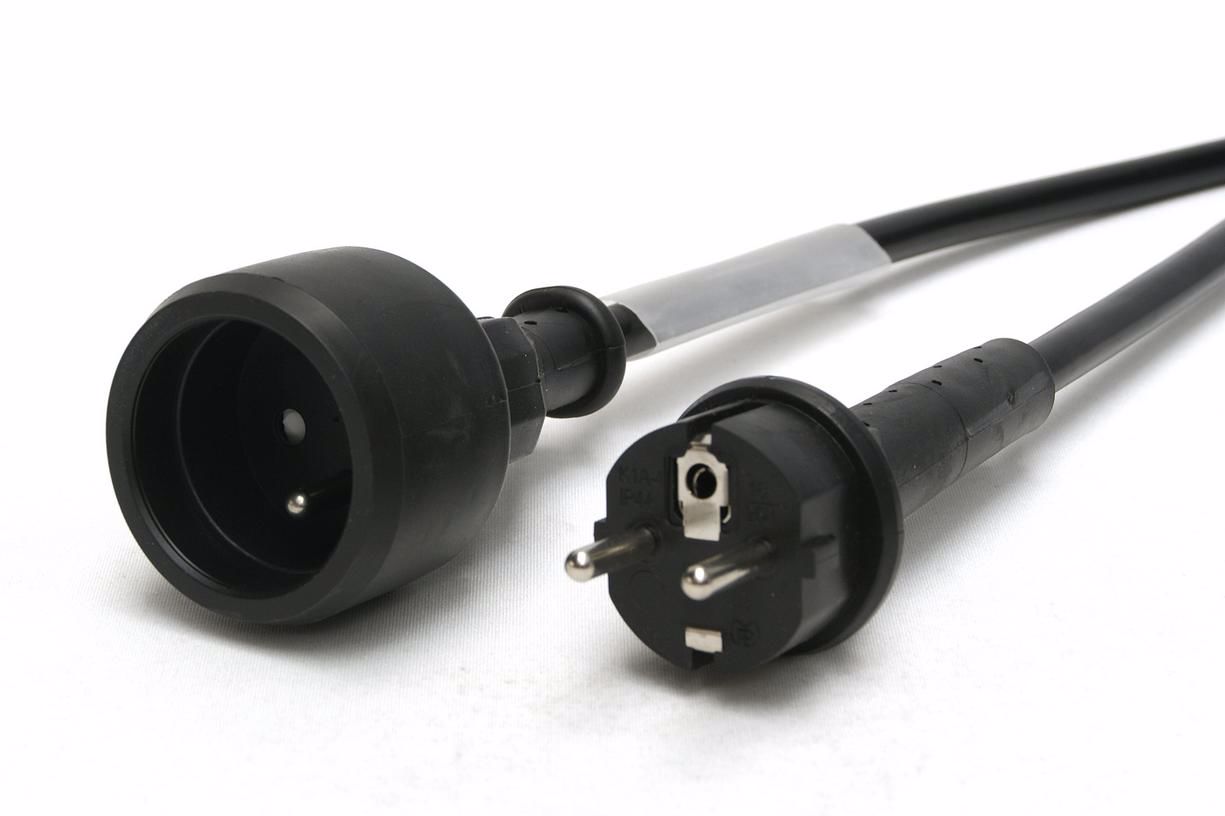

Power cable Male/Female 1,5m 3G2,5

Belgian/French standaard ! PEN EARTH !!

Cable Speakon, 2P, Female

2 pole cable connector, chuck type strain relief The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination. Features & Benefits •Current rating 40 A continuous, 50 A audio signal with 50% duty cycle •Only 3 parts, easy to assemble •High impact materials – long-lasting and reliable •Easy and extremely precise locking system "Quick Lock" •1 piece strain relief, chuck for 6 to 10 mm cable O.D. •Improved grip on latch •Mates with 4-pole chassis connector as well and makes contact with +1/-1
