SOM-502-0051-1

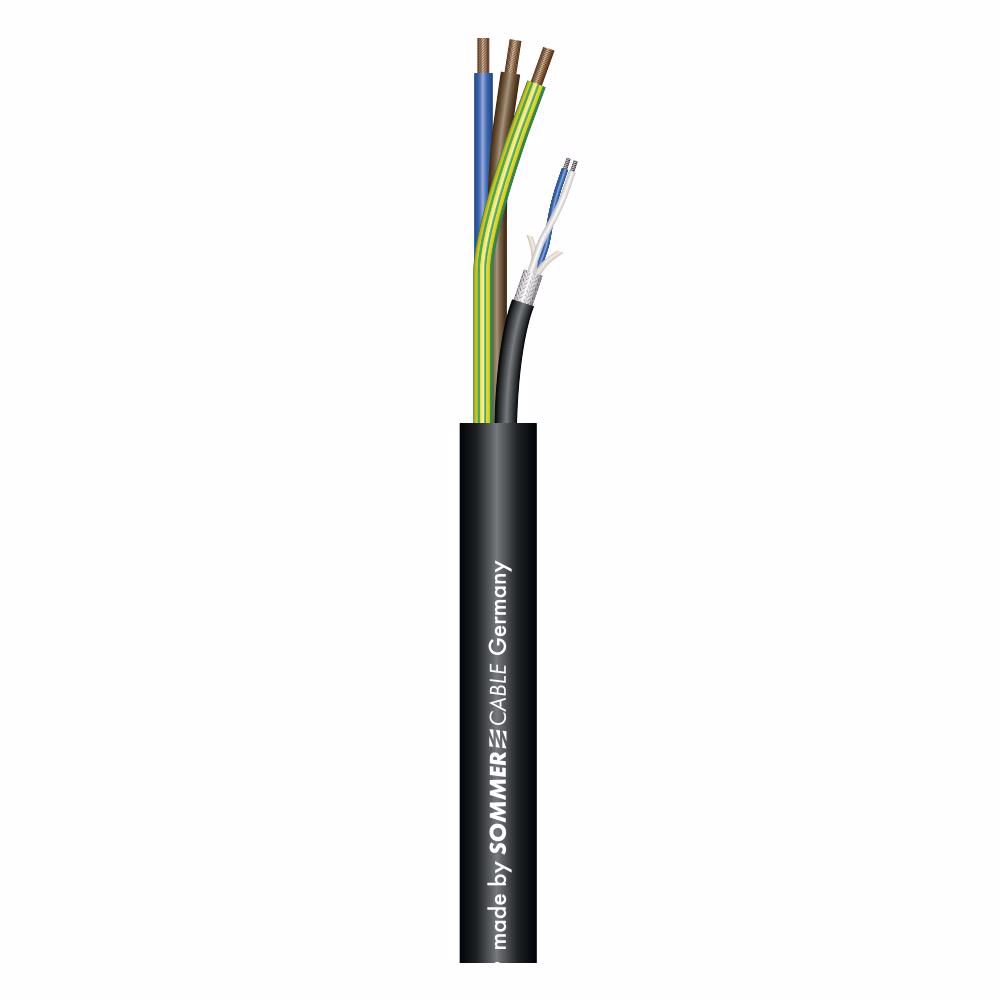

SC-Monolith 1 compact; power: 3 x 1,50 mm²; DMX: 2 x 0,14 mm²; PVC Ø 9,50 mm; black
Technical Data: - Name: SC-Monolith 1 compact - Properties: OFC oxygen free copper - Properties: Digital 110 Ω AES / EBU - Properties: Analog - Application area: Studio / Broadcast - Application area: Installation - Application area: Mobile outdoor / indoor - Application area: Stage / live - Application: DMX & Power - Colour: black - Colour detailed: black - Signal transmission: symmetrical - Jacket material: PVC - Jacket Ø: 9,5 mm - Jacket Ø (AES/EBU, DMX): 3 mm - Number of Channels (power): 1 - Number of Channels (AES/EBU, DMX): 1 - Inner conductor (power): 3 - Inner conductor (AES/EBU, DMX): 2 - Inner conductor (power): 1,5 mm² - Inner conductor (AES/EBU, DMX): 0,14 mm² - Inner conductor Ø (power): 1,38 mm - AWG (power): 15 - AWG (AES/EBU, DMX): 25 - Shielding (audio): Copper spiral, tin-plated - Shielding (AES/EBU, DMX): Copper spiral, tin-plated - Copper strands (power): 28 - Copper strands (AES/EBU, DMX): 36 - Copper strand Ø (power): 0,25 mm - Copper strand Ø (AES/EBU, DMX): 0,07 mm - Conductor insulation material (AES/EBU, DMX): PVC - Conductor insulation Ø (power): 2,8 mm - Conductor insulation Ø (AES/EBU, DMX): 1,15 mm - Weight per 1 m: 144 g - UV-resistant: yes - Fire load per m: 0,54 kWh - Style variant: round - Shielding factor: 90 % - Packing: bulk stock - Temperature min.: -30 °C - Temperature max.: 70 °C - Width: 9,5 mm - Height: 9,5 mm - Capac. cond./cond. per 1 m (audio): 52 pF - Capac. cond./cond. per 1 m (AES/EBU, DMX): 52 pF - Capac. cond./shield. per 1 m (audio): 89 pF - Capac. cond./shield. per 1 m (AES/EBU, DMX): 89 pF - Surge impedance (audio): 110 Ω - Surge impedance (AES/EBU, DMX): 110 Ω - Insulation resist. per 1 km (audio): 0,1 GΩ - Insulation resist. per 1 km (AES/EBU, DMX): 0,1 GΩ
Availability:
Out of stock (On request)
