SOM-581-0251

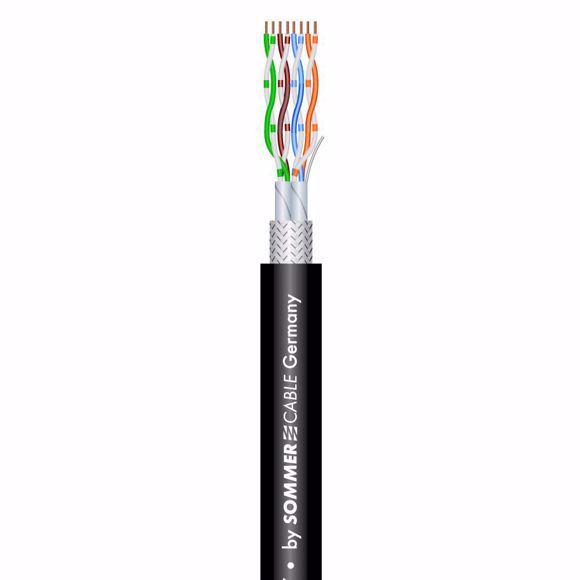

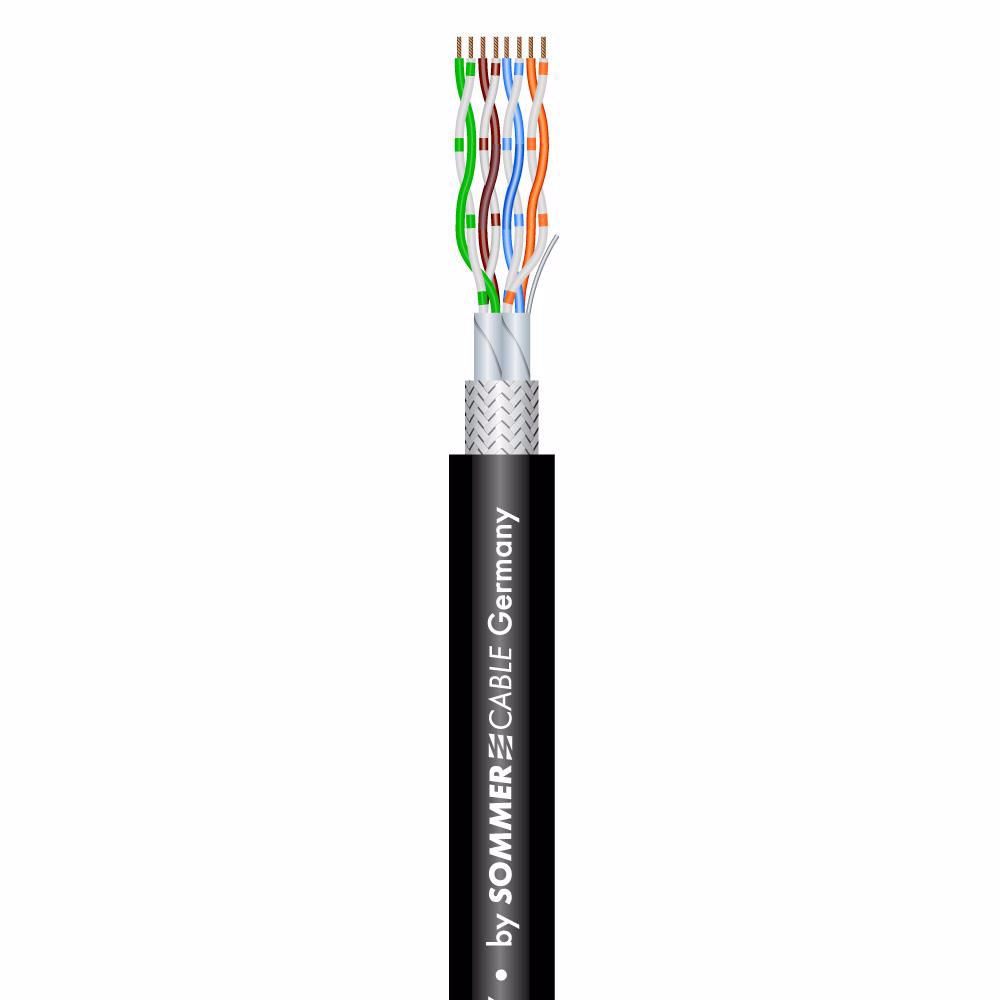

SC-Mercator CAT.7 PUR XL; PUR; black, Ø 8,50 mm

Technical Data: - Properties: Halogen-free / LSZH - Properties: FRNC flame retardant - Properties: OFC oxygen free copper - Properties: PUR - Properties: Digital 110 Ω AES / EBU - Application area: Installation - Application area: Studio / Broadcast - Application area: Mobile outdoor / indoor - Colour: black - Colour detailed: black - Jacket material: PUR - Jacket Ø: 8,5 mm - Number of Channels (network): 1 - Inner conductor (network): 8 - AWG (network): 23 - Shielding: PimF, Copper braiding tin-plated - Copper strands (network): 7 - Copper strand Ø (network): 0,22 mm - Conductor insulation material: Foam / Skin-PE - Weight per 1 m: 80 g - UV-resistant: yes - Fire load per m: 0,23 kWh - Style variant: round - Shielding factor: 100 % - Packing: 500 m spool - Packing: 100 m spool - Velocity factor: 0,75 - Temperature min.: -20 °C - Temperature max.: 60 °C - Width: 8,5 mm - Height: 8,5 mm - Capacity wire/wire at 1m (network): 44 pF - Impedance: 100 Ω - Insulation resist. per 1 km: 5 GΩ - Insulation resist. per 1 km (network): 5 GΩ
