SOM-600-2231

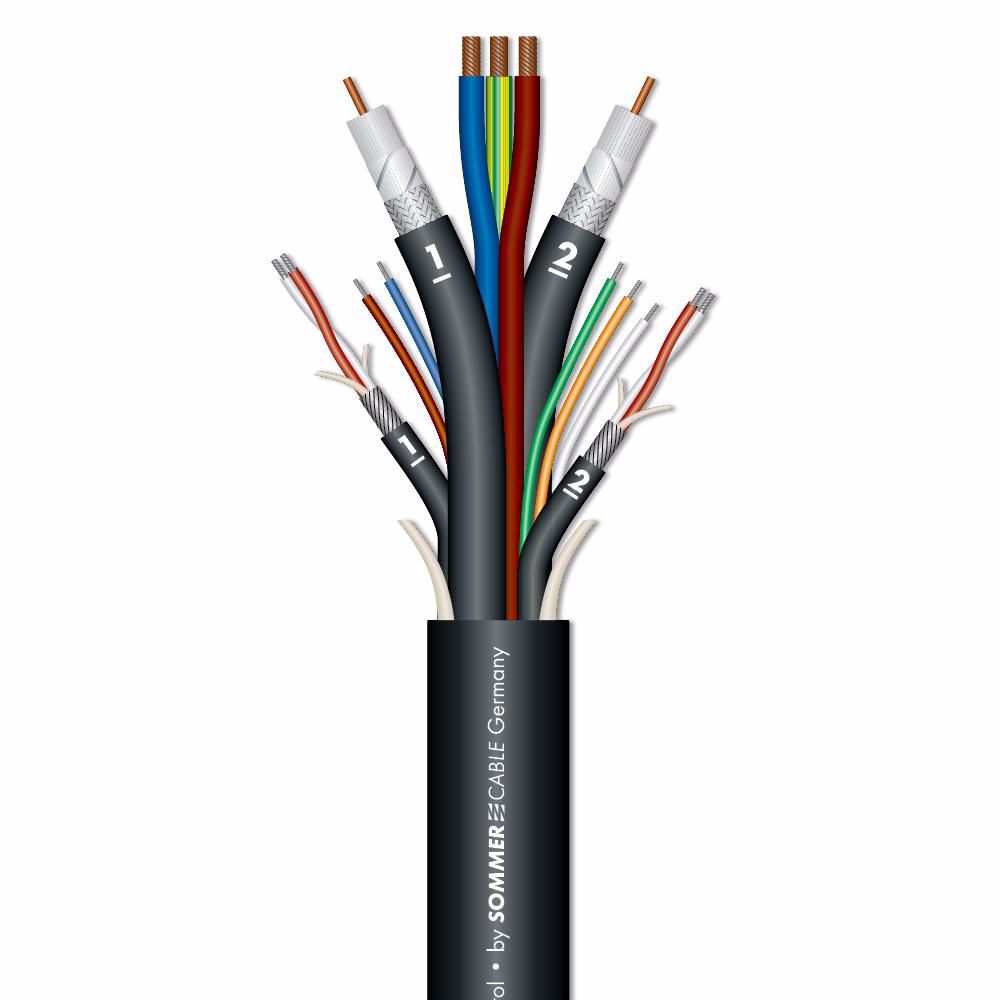

Transit MC 2235 HD; video: 2 x 0,80/3,70; audio: 2 x 4 x 0,14 mm²; power: 3 x 1,50 mm²; 5

Technical Data: - Properties: Analog - Properties: Digital 75 Ω - Properties: OFC oxygen free copper - Properties: SDI - Application area: Installation - Application area: Mobile outdoor / indoor - Application area: ELA 100 V - Application area: Studio / Broadcast - Application: hybrid cable - Colour: black - Colour detailed: black - Jacket material: S-PVC - Jacket material (audio): PVC - Jacket material (video): PVC - Jacket Ø: 14,5 mm - Jacket Ø (audio): 2,6 mm - Number of Channels (audio): 2 - Number of Channels (video): 2 - Number of Channels (power): 1 - Number of Channels (control): 5 - Inner conductor (audio): 4 - Inner conductor (video): 2 - Inner conductor (power): 3 - Inner conductor (audio): 0,14 mm² - Inner conductor (video): 0,5 mm² - Inner conductor (power): 1,5 mm² - Inner conductors (control): 0,34 mm² - Inner conductor Ø (audio): 0,42 mm - Inner conductor Ø (video): 0,8 mm - Inner conductor Ø (power): 1,38 mm - Inner conductor Ø (control): 0,66 mm - AWG (audio): 26 - AWG (video): 20 - AWG (control): 22 - Shielding (video): Copper braiding tin-plated + AL / PT foil - Copper strands (audio): 18 - Copper strand Ø (audio): 0,1 mm - Wire insulation material (video): Foam / Skin-PE - Conductor insulation Ø (video): 3,7 mm - Weight per 1 m: 236 g - UV-resistant: yes - Fire load per m: 1,01 kWh - Style variant: round - Shielding factor: 100 % - Packing: bulk stock - Temperature min.: -20 °C - Temperature max.: 70 °C - Width: 14,5 mm - Height: 14,5 mm - Capac. cond./cond. per 1 m (audio): 78 pF - Capac. cond./shield. per 1 m (audio): 130 pF - Capacity wire/electic screen at 1m (video): 54 pF
