SYN-PSEGREEN

Microphone Cable Stage 22 Highflex; 2 x 0,22 mm²; PVC Ø 6,40 mm; black

Technical Data: - Properties: Analog - Properties: OFC oxygen free copper - Application area: Stage / live - Application area: Mobile outdoor / indoor - Application area: Installation - Application: Microphone Cable - Colour: black - Colour detailed: black - Signal transmission: symmetrical - Jacket material: PVC - Jacket Ø: 6,4 mm - Number of Channels (audio): 1 - Inner conductor (audio): 2 - Inner conductor (audio): 0,22 mm² - Inner conductor Ø (audio): 0,53 mm - AWG (audio): 24 - Shielding: Copper spiral shielding with 0.10 mm indiv. strands - Copper strands (audio): 28 - Copper strand Ø (audio): 0,10 mm - Weight per 1 m: 44 g - UV-resistant: yes - Fire load per m: 0,22 kWh - Style variant: round - Shielding factor: 99 % - Packing: 100 m spool - Packing: 500 m spool - Temperature min.: -20 °C - Temperature max.: 70 °C - Width: 6,4 mm - Height: 6,4 mm - Capac. cond./cond. per 1 m (audio): 68 pF - Capac. cond./shield. per 1 m (audio): 130 pF - Impedance: 100 Ω - Insulation resist. per 1 km: 1 GΩ - Insulation resist. per 1 km (audio): 1 GΩ - Conductor resistance per 1 km: 87 Ω - Shield. resistance per 1 km: 30 Ω

Cable ties 368*4,8 black/100pc

Our range of cable ties includes: standard Polyamide 6.6 (PA 66) cable ties, heat-resistant cable ties, Polypropylene cable ties, Tefzel® cable ties, detectable cable ties, stainless steel cable ties, releasable cable ties, push mount cable ties, marker cable ties, chassis cable ties and airconditioning cable ties.

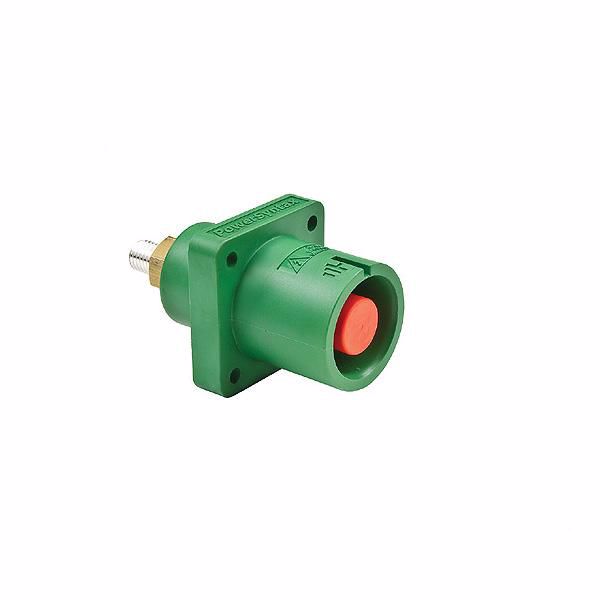

Panel Source Line 1

PANEL - Specific housing for protection cap lacing are moulded on the plastic body of the flange. IP2X finger protection prevents accidental touching of live contact parts. Contact to housing retention through flame-retardant UL94-VO plastic cotter pin. No special tools are required for assembling. Suited for front or rear panel mount. M12 thread ensures cable attachment. Phase/line and safety information are embossed on connector’s shell.

Panel Source Line 2

PANEL - Specific housing for protection cap lacing are moulded on the plastic body of the flange. IP2X finger protection prevents accidental touching of live contact parts. Contact to housing retention through flame-retardant UL94-VO plastic cotter pin. No special tools are required for assembling. Suited for front or rear panel mount. M12 thread ensures cable attachment. Phase/line and safety information are embossed on connector’s shell.
