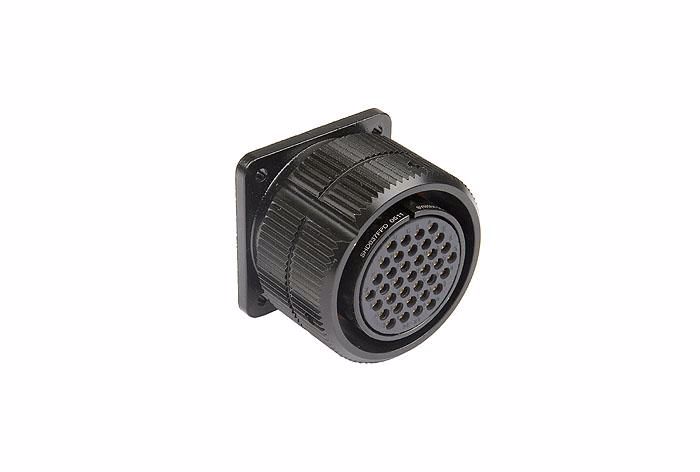

SYN-RL37FP

Female panel 37p, SHD

SHD ROADLINE Inline and panel versions available The SYNTAX® SHD ROADLINE series is a newly conceived product, suitable for outdoor live performances (PA) and broadcasting (OB). SYNTAX® SHD ROADLINE is extremely robust, in compliance with Mil. C505 and VG 95234 military standards. This version has been enhanced to ensure long term reliability and increased number of mating cycles in rigorous conditions. It is also provided with bigger coupling roller pins for easier coupling. The increased thickness of the locking ring is meant to avoid ovalization caused by unintentional blows and supplied with enlarged rolling pins for easy mating. Deeper knurling on the hand grip and oversize locking ring also help better mating/demating. "Heavy duty" backshell is designed to ensure effective protection and easy wiring. All SYNTAX® SHD ROADLINE connectors are suited for outdoor applications being IP67 waterproof. Accessories, assembling tools and protection caps are supplied. Protection caps are directly laced to the backshell through a cord made up of 7 stainless steel strands protected by special anti scratch teflon tubing. Different options are available to meet even the most demanding requirements. SYNTAX® SHD Roadline series is supplied in several configurations: 13, 19, 25, 37, 54, 85, 100 and 150 pins.
Manufacturer: Syntax
Availability: Out of stock (On request)
Products specifications
Contacts 37P
Products specifications
Contacts 37P
