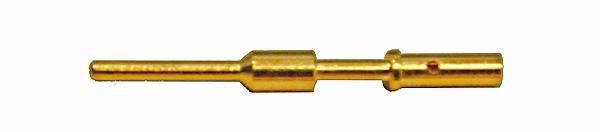

SYN-RLCM150

Road line cont Female gold 150

This original Syntax component is provided with a protective jacket to improve contactation on SHD series connector. Improved electrical conductivity Self-centered for a seamless connection. Lower operating temperature Increased number of mating cycles

Road line cont Male gold 13-85

This original Syntax component is provided with a protective jacket to improve contactation on SHD series connector. Improved electrical conductivity Self-centered for a seamless connection. Lower operating temperature Increased number of mating cycles

Patch cable SC-Isopod SO-F22; 2 x 0,22 mm²; PVC Ø 3,30 mm; orange

Technical Data: - Properties: Analog - Properties: OFC oxygen free copper - Application area: Installation - Application: Patch cable - Colour: orange - Colour detailed: orange - Signal transmission: symmetrical - Jacket material: PVC - Jacket Ø: 3,3 mm - Number of Channels (audio): 1 - Inner conductor (audio): 2 - Inner conductor (audio): 0,22 mm² - Inner conductor Ø (audio): 0,53 mm - AWG (audio): 24 - Shielding: AL / PT foil + AL / PT foil + filler strand, tin-plated - Copper strands (audio): 7 - Copper strand Ø (audio): 0,20 mm - Conductor insulation material: PE - Conductor insulation Ø: 1,12 mm - Weight per 1 m: 16 g - Fire load per m: 0,05 kWh - Style variant: round - Shielding factor: 100 % - Packing: 200 m spool - Temperature min.: -25 °C - Temperature max.: 70 °C - Width: 3,3 mm - Height: 3,3 mm - Capac. cond./cond. per 1 m (audio): 74 pF - Capac. cond./shield. per 1 m (audio): 143 pF - Insulation resist. per 1 km: 0,2 GΩ - Insulation resist. per 1 km (audio): 0,2 GΩ - Conductor resistance per 1 km: 88 Ω - Shield. resistance per 1 km: 75 Ω Only available on full 200m lenghts

SC-Monolith 4 HV; power: 3 x 2,50 mm²; DMX: 2 x 0,25 mm²; PVC Ø 18,00 mm - Power OD: 8,3mm; black

Technical Data: - Name: SC-Monolith 4 HV - Properties: Digital 110 Ω AES / EBU - Properties: Analog - Properties: OFC oxygen free copper - Application area: Installation - Application area: Studio / Broadcast - Application area: Stage / live - Application area: Mobile outdoor / indoor - Application: DMX & Power - Colour: black - Colour detailed: black - Signal transmission: symmetrical - Jacket material: PVC - Jacket Ø: 18 mm - Jacket Ø (power): 8,3 mm - Jacket Ø (AES/EBU, DMX): 4,3 mm - Number of Channels (power): 1 - Number of Channels (AES/EBU, DMX): 4 - Inner conductor (power): 3 - Inner conductor (AES/EBU, DMX): 2 - Inner conductor (power): 2,5 mm² - Inner conductor (AES/EBU, DMX): 0,25 mm² - Inner conductor Ø (power): 1,78 mm - Inner conductor Ø (AES/EBU, DMX): 0,56 mm - AWG (power): 13 - Shielding (AES/EBU, DMX): Braided mesh, tin-plated - Copper strands (power): 48 - Copper strands (AES/EBU, DMX): 7 - Copper strand Ø (power): 0,25 mm - Copper strand Ø (AES/EBU, DMX): 0,20 mm - Wire insulation material (power): PVC - Conductor insulation Ø (power): 3,1 mm - Weight per 1 m: 376 g - UV-resistant: yes - Fire load per m: 1,24 kWh - Style variant: round - Shielding factor: 90 % - Packing: bulk stock - Temperature min.: -30 °C - Temperature max.: 70 °C - Width: 18 mm - Height: 18 mm - Capac. cond./cond. per 1 m (AES/EBU, DMX): 52 pF - Capac. cond./shield. per 1 m (AES/EBU, DMX): 89 pF - Surge impedance (AES/EBU, DMX): 110 Ω - Insulation resist. per 1 km (AES/EBU, DMX): 0,1 GΩ - Conductor resistance per 1 km (power): 80 Ω
