TLX-TL-VFL-1MW

Visual Fault Locator -- 1mW output for 5km signal distribution

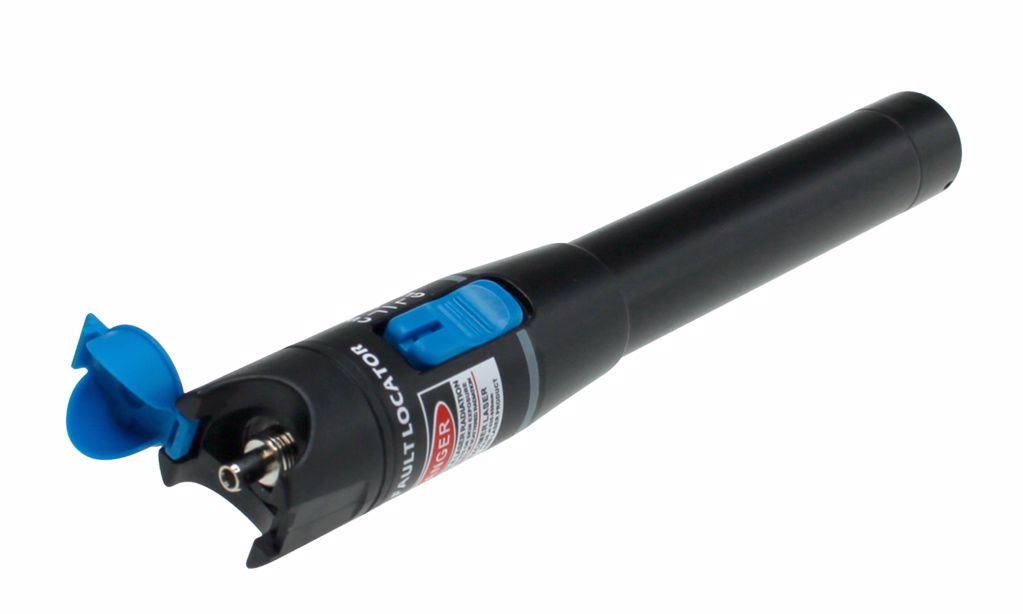

Fiber Optic Visual Fault Locator (VFL) -- 1mW

The TechLogix TL-VFL-1MW is a compact fiber optic visual fault locator (affectionately known as a "VFL") that's ideal for locating breaks and out-of-spec bends in a fiber optic cable. It's also a crucial tool for verifying mechanical fiber optic connectors are terminated properly and identifying strands during splicing and/or patching.

The VFL-1MW features a 1mW output which drives a visible laser signal up to 5km. Plus, two modes of operation -- continuous wave output and flashing wave output -- help identify different strands and cable runs.

The VFL-1MW features battery power and a 2.5mm universal connector, which is designed for use with SC, ST and FC style connectors (integration with LC style connectors requires a 2.5mm to 1.25mm adapter). Both single mode and multimode fiber are supported.

TechLogix offers special order VFL models for signal distances over 5km. Please contact the factory for details.



  • 1mW visible wave output
  • Up to 5km max signal transmission
  • Ideal for locating out-of-spec bends & breaks in fiber optic cabling
  • Ideal for verifying proper fiber optic connector termination
  • Ideal for toning & tracing fiber optic cable runs & strands
  • Battery powered (2 x AA) with 18 hour average battery life
  • Built-in dust cap
  • Metal construction
  • Water-resistant
  • Continuous wave & pulsed wave modes of operation
  • 650nm wavelength
  • Compatible with SC, ST & FC style connectors (LC connectors require an adapter)
  • Compatible with both single mode & multimode fiber
  • Includes carry case
Manufacturer: TechLogix
Availability: In stock
