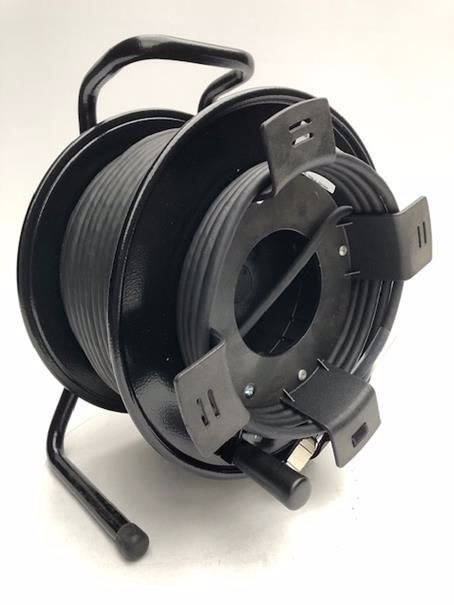

AXE-CAT6/TLG/1302E/DRUM-CABLE

Axept CAT6S/FTP cable black

• S/FTP Cat.6 4x2xAWG 27 LSHZ
• Outer diameter 6,2mm
• Flame retardant acc. to IEC-60332-1
• Length imprinted on strain relief
• Contacts gold-plated

Connector: RJ45 plug shielded and gold plated contacts
Boot: PVC 75A / Length imprinted
Cable: S/FTP Cat.6 4x2xAWG27 LSZH
Outer diamete: r 6.2mm
Bending radius: 5 x outer diameter
Jacket: Flame retardant acc. to IEC 60332-1
Printing: Cat.6 S/FTP 4x2xAWG27/7 PIMF ISO/IEC 11801 & EN50173-1 TIA/EIA 568.2-1
Halogen Free ***Gigabit***
general temperature range 0° up to + 60°C
withstand voltage 500V DC

D-shape CAT6_A panel connector, shielded, feedthrough, black housing

D-shape CAT6A panel connector, shielded, feedthrough, black housing Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables. Features & Benefits •Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2 •PoE+ compliant according to 802.3at Type2 •Rugged latch lock system million fold proven •Intermateable with the existing etherCON CAT5 range •Shielded system - high noise immunity and EMI protection

HDMI feedthrough adapter, black D-shape housing

HDMI feedthrough adapter, black D-shape housing Neutrik's HDMI solution for the transmission of any digital TV and PC video format including high-definition video (HDTV) can be integrated in networks very easy. Features & Benefits •To transmit any digital TV and PC video format including high-definition video (HDTV) •HDMI feedthrough adapter with 19 pole HDMI receptacle at both ends •Dust and water resistant acc. to IP65 safety standard in combination with NKHDMI-* •Universally accepted standard D-shape housing •Removable screen to chassis grounding:

Reversible USB 3.0 gender changer (type A and B), black D-housing

Reversible USB 3.0 gender changer (type A and B), black D-housing The NAUSB3-B is a reversible USB 3.0 feed through adapter. The standardized D-shape housing of the adapter fits into conventional patch panels and offers an additional protection for the connector. Features & Benefits •USB 3.0 feedthrough adapter •Reversible insert offering type A or B on front or rear end •Standard D-shape housing •Removable screen for chassis grounding •Meets USB 3.0 specifications USB 3.0 Performance To meet the USB3.0 specifications the NAUSB3* chassis contain tight tolerance pin wiring and an improved ground connection due to an additional copper film between the USB jacks. As a result the feed through adapter guarantees permanent writing and reading speed > 200 MB/s.
