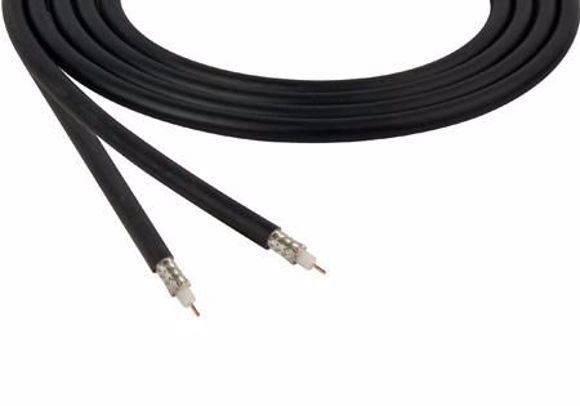

BEL-1505F-BK

RearTWIST UHD BNC Cable Connectors for Belden 1505F

The rearTWIST UHD BNC connectors are specifically designed for high resolution video signal transmissions. Due to the unique insulator and contact pin design, the connectors feature low return loss values for 4K and 8K signals. Features & Benefits •Optimized contact pin and insulator design for UHD-data transmissions •Proven rearTWIST technology •Swiss antraloy plating •Fully compatible with conventional BNC chassis connectors •Improved return loss values at high frequencies

Microphone Cable Stage 22 Highflex; 2 x 0,22 mm²; PVC Ø 6,40 mm; black

Technical Data: - Properties: Analog - Properties: OFC oxygen free copper - Application area: Stage / live - Application area: Mobile outdoor / indoor - Application area: Installation - Application: Microphone Cable - Colour: black - Colour detailed: black - Signal transmission: symmetrical - Jacket material: PVC - Jacket Ø: 6,4 mm - Number of Channels (audio): 1 - Inner conductor (audio): 2 - Inner conductor (audio): 0,22 mm² - Inner conductor Ø (audio): 0,53 mm - AWG (audio): 24 - Shielding: Copper spiral shielding with 0.10 mm indiv. strands - Copper strands (audio): 28 - Copper strand Ø (audio): 0,10 mm - Weight per 1 m: 44 g - UV-resistant: yes - Fire load per m: 0,22 kWh - Style variant: round - Shielding factor: 99 % - Packing: 100 m spool - Packing: 500 m spool - Temperature min.: -20 °C - Temperature max.: 70 °C - Width: 6,4 mm - Height: 6,4 mm - Capac. cond./cond. per 1 m (audio): 68 pF - Capac. cond./shield. per 1 m (audio): 130 pF - Impedance: 100 Ω - Insulation resist. per 1 km: 1 GΩ - Insulation resist. per 1 km (audio): 1 GΩ - Conductor resistance per 1 km: 87 Ω - Shield. resistance per 1 km: 30 Ω

Boot Sleeve Rear Twist BNC CYAN

Colored boots for rearTWIST BNC cable connectors Color coding: 0 - Black 1 - Brown 2 - Red 3 - Orange 4 - Yellow 5 - Green 6 - Blue 7 - Violet 8 - Grey 9 - White

Patch cable SC-Isopod SO-F22; 2 x 0,22 mm²; PVC Ø 3,30 mm; black

Technical Data: - Properties: Analog - Properties: OFC oxygen free copper - Application area: Installation - Application: Patch cable - Colour: black - Colour detailed: black - Signal transmission: symmetrical - Jacket material: PVC - Jacket Ø: 3,3 mm - Number of Channels (audio): 1 - Inner conductor (audio): 2 - Inner conductor (audio): 0,22 mm² - Inner conductor Ø (audio): 0,53 mm - AWG (audio): 24 - Shielding: AL / PT foil + AL / PT foil + filler strand, tin-plated - Copper strands (audio): 7 - Copper strand Ø (audio): 0,20 mm - Conductor insulation material: PE - Conductor insulation Ø: 1,12 mm - Weight per 1 m: 16 g - UV-resistant: yes - Fire load per m: 0,05 kWh - Style variant: round - Shielding factor: 100 % - Packing: 200 m spool - Temperature min.: -25 °C - Temperature max.: 70 °C - Width: 3,3 mm - Height: 3,3 mm - Capac. cond./cond. per 1 m (audio): 74 pF - Capac. cond./shield. per 1 m (audio): 143 pF - Insulation resist. per 1 km: 0,2 GΩ - Insulation resist. per 1 km (audio): 0,2 GΩ - Conductor resistance per 1 km: 88 Ω - Shield. resistance per 1 km: 75 Ω Only available on full 200m lenghts
