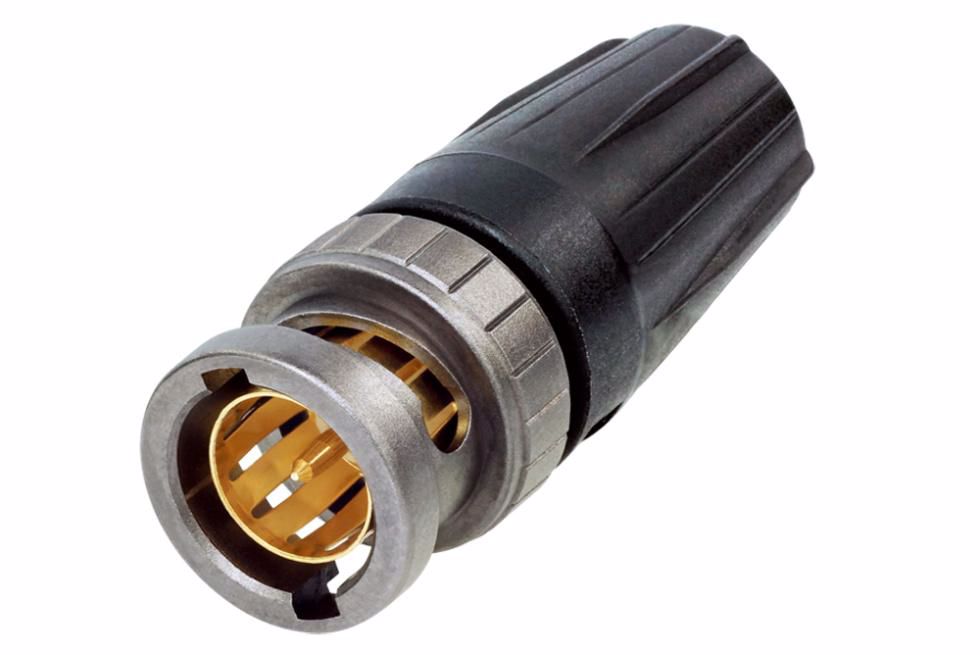

NEU-NBNC75BJP9X

COAX Cable RG59/U - BLACK - Flexible

22 AWG stranded (7x29) .031" bare compacted copper conductor, gas-injected foam HDPE insulation, tinned copper double braid shield (95% coverage), PVC jacket.

Declaration of Conformity

Grounded UHD BNC chassis connector, feedthrough in antraloy plated D-shape housing

Grounded UHD BNC chassis connector, feedthrough in antraloy plated D-shape housing Neutrik's UHD BNC chassis connectors offer low return loss values at high frequencies specific for high resolution video signal transmission. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use and is in addition recessed and therefore well protected in a D-shape housing Features & Benefits •Optimized gold plated cage type center contact for UHD signals as 4K or 8K •Swiss antraloy plating •Grounded panel mount •Standard D-shape housing provides flush mounting and protection from damage •Color coding possible •Fully compatible with conventional BNC cable connectors Optimized Return Loss Due to optimized insulator design the Neutrik rearTWIST UHD BNC chassis connector achieves increased headroom compared to conventional BNC connectors and offers additional return loss reserve for potential impedance deviations resulting from cable bending, incorrect connector assembly or faulty connection interfaces without signal interruption.

Axept CAT6S/FTP cable black

• S/FTP Cat.6 4x2xAWG 27 LSHZ
• Outer diameter 6,2mm
• Flame retardant acc. to IEC-60332-1
• Length imprinted on strain relief
• Contacts gold-plated

Connector: RJ45 plug shielded and gold plated contacts
Boot: PVC 75A / Length imprinted
Cable: S/FTP Cat.6 4x2xAWG27 LSZH
Outer diamete: r 6.2mm
Bending radius: 5 x outer diameter
Jacket: Flame retardant acc. to IEC 60332-1
Printing: Cat.6 S/FTP 4x2xAWG27/7 PIMF ISO/IEC 11801 & EN50173-1 TIA/EIA 568.2-1
Halogen Free ***Gigabit***
general temperature range 0° up to + 60°C
withstand voltage 500V DC

Boot Sleeve Rear Twist BNC CYAN

Colored boots for rearTWIST BNC cable connectors Color coding: 0 - Black 1 - Brown 2 - Red 3 - Orange 4 - Yellow 5 - Green 6 - Blue 7 - Violet 8 - Grey 9 - White
