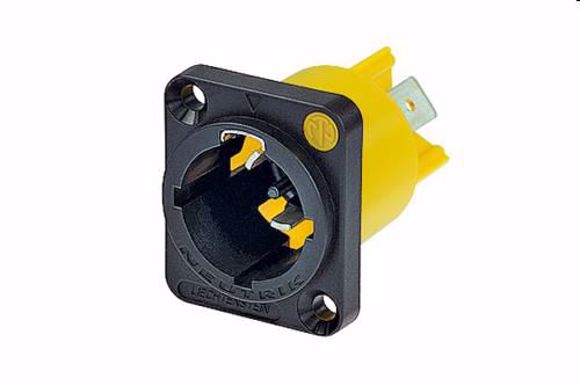

NEU-NAC3MPX

Appliance inlet connector, 1/4'' flat tab terminals

Appliance inlet connector, 1/4'' flat tab terminals The powerCON TRUE1 is a locking 16 A true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live. Features & Benefits Appliance inlet True mains connector with breaking capacity (CBC) Lockable 16 A single phase connector (USA: 20 A) Easy and reliable twist lock system Extremely robust and reliable ENEC certified according to IEC 60320 UL recognized components IP65 ingress protection in mated condition and unmated in combination with SCNAC-MPX
Manufacturer: Neutrik
Availability: Out of stock (On request)
Customers who bought this item also bought

NEU-SCCD-W

Spring-loaded sealing cover

The spring-loaded cover SCCD-W shuts automatically after unplugging the cable connector and seals the chassis connectors against dust and water to IP65. The transparent cover allows you to see the protected chassis connector all the time. Suitable for: XLR D Series female XLR D Series male 1/4" Jacks D Series speakON NL2M* and NL4M* powerCON 20 A Series NAC3MPA* and NAC3MPB* powerCON TRUE1 NAC3MPX opticalCON Chassis Connectors USB NAUSB-W* HDMI NAHDMI-W* D-SUB NADB* Firewire NA1394-6-W* etherCON D Series etherCON CAT6 Chassis Connectors etherCON CAT6A Chassis Connectors BNC D Series Phono (RCA) Chassis Connectors

FIX-NUT-M3-SILVER-LOCKWASHER

250x COMBY Prevailing torque type hexagon nut with captive toothed lock washer Steel Zinc plated M3


FIX-BOLT-M3X16-BLACK-COUNTERSUNK

200x Cross recessed countersunk head Phillips DIN 965-H Steel Zinc plated black pass. 4.8 M3X16


NEU-NE8FDP-TOP

Neutrik ETHERCON TOP - RJ45 feedthrough receptacle

RJ45 feedthrough receptacle, combined with sealing kit SE8FD-TOP, D-shape metal flange with the latch lock, mounting screws included.

The etherCON series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lighting network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry. The D-series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.

ATTENTION: Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.
