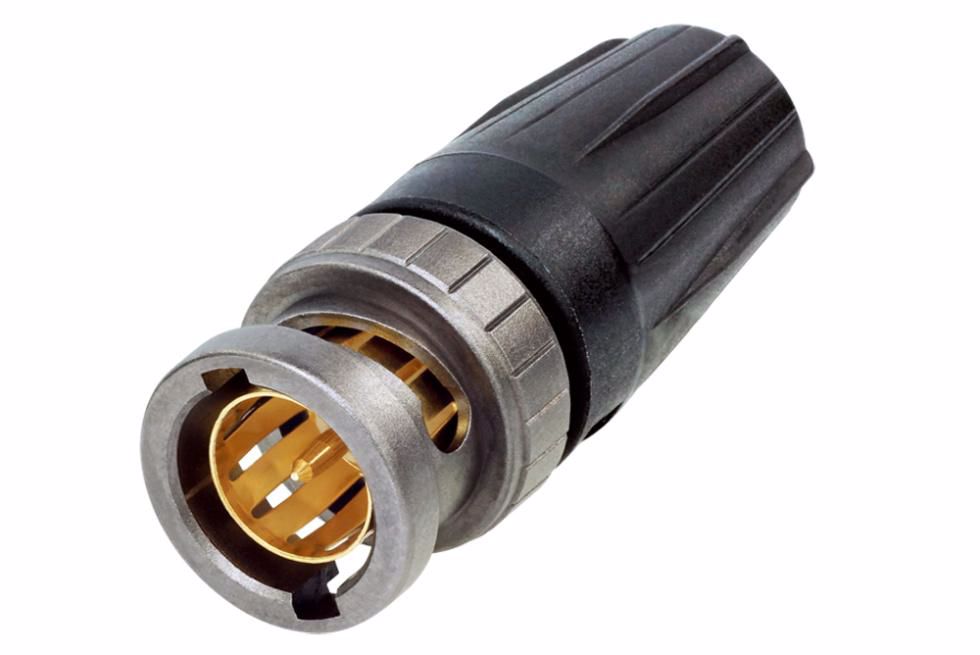

NEU-NBNC75BTU11X

RearTWIST UHD BNC Cable Connectors for Belden 1694A

The rearTWIST UHD BNC connectors are specifically designed for high resolution video signal transmissions. Due to the unique insulator and contact pin design, the connectors feature low return loss values for 4K and 8K signals. Features & Benefits •Optimized contact pin and insulator design for UHD-data transmissions •Proven rearTWIST technology •Swiss antraloy plating •Fully compatible with conventional BNC chassis connectors •Improved return loss values at high frequencies
Manufacturer: Neutrik
Availability: In stock
