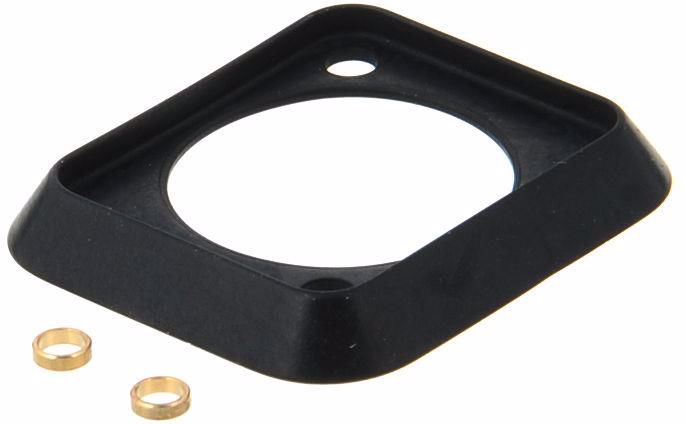

NEU-SCDP-FX-0

D-SIZE GASKET BLACK

The SCDP-* sealing gasket provides a dust and water resistant assembly for all D-shape chassis connectors to front panels.

Color coding:
0-black
2-red
4-yellow
5-green
6-blue
9-white

Manufacturer: Neutrik
Availability: In stock
