SOM-500-0191-2

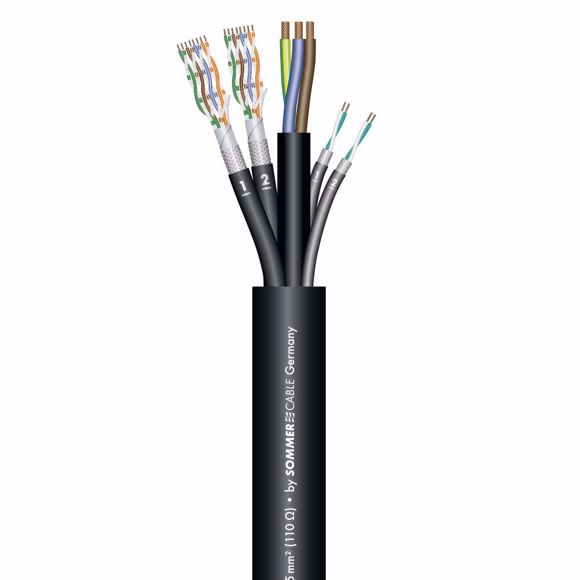

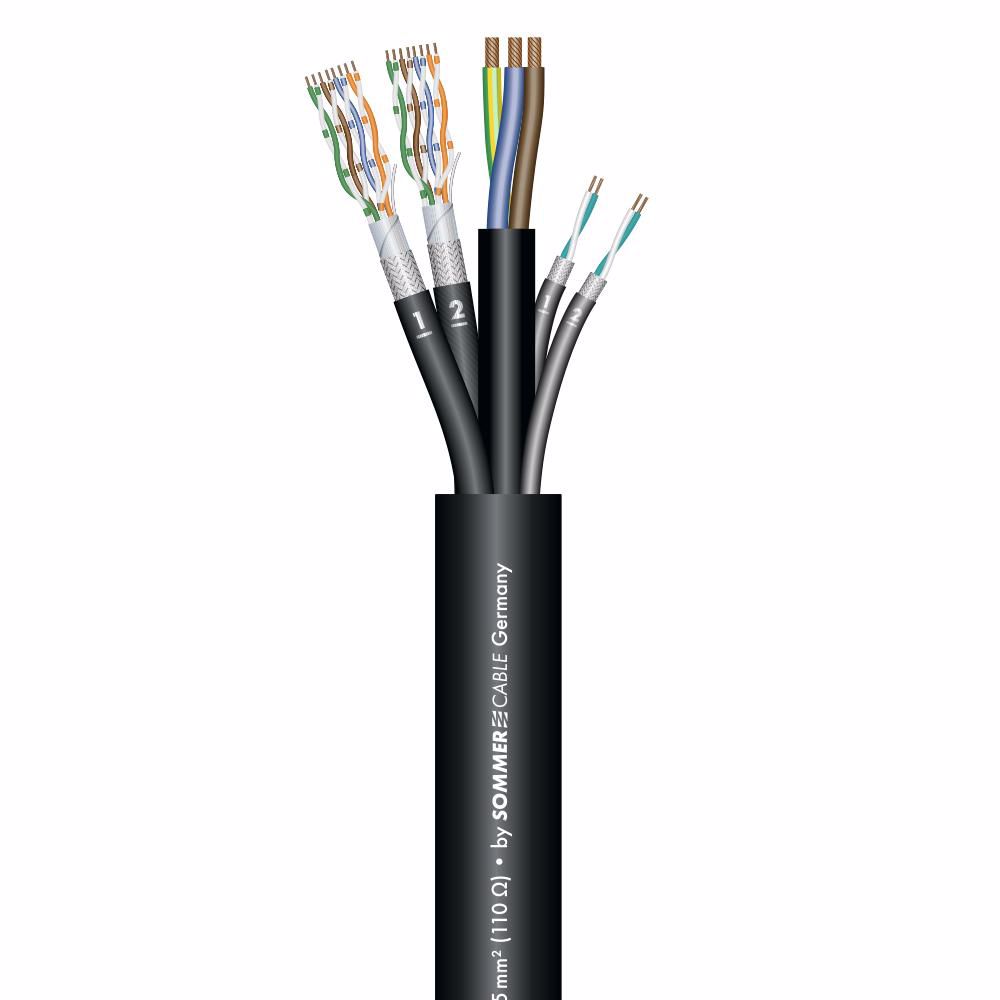

SC-Monocat Power 212; power: 3 x 2,50 mm²; 2 x CAT.7; DMX: 2 x 0,25 mm²; PVC Ø 21,80 mm; black

Technical Data: - Name: SC-Monocat Power 212 - Properties: Digital 110 Ω AES / EBU - Properties: OFC oxygen free copper - Properties: Analog - Application area: Stage / live - Application area: Mobile outdoor / indoor - Application area: Studio / Broadcast - Application area: Installation - Application: hybrid cable - Colour: black - Colour detailed: black - Signal transmission: symmetrical - Jacket material: PVC - Jacket Ø: 21,5 mm - Number of Channels (power): 1 - Number of Channels (AES/EBU, DMX): 2 - Number of Channels (network): 2 - Inner conductor (power): 3 - Inner conductor (AES/EBU, DMX): 2 - Inner conductor (network): 8 - Inner conductor (power): 2,5 mm² - Inner conductor (AES/EBU, DMX): 0,25 mm² - Inner conductor Ø (network): 0,51 mm - Shielding (AES/EBU, DMX): Copper spiral, tin-plated - Shielding (network): PiMF + tinned copper braid - Conductor insulation material: Foam / Skin-PE - Weight per 1 m: 470 g - UV-resistant: yes - Fire load per m: 2,38 kWh - Style variant: round - Shielding factor: 100 % - Packing: bulk stock - Max. section length: 110 m - Temperature min.: -30 °C - Temperature max.: 75 °C - Width: 21,5 mm - Height: 21,5 mm - Capacity wire/wire at 1m (network): 44 pF - Impedance (network): 100 Ω - Insulation resist. per 1km (power): 5 GΩ - Nominal voltage (power): 300 V - Operating voltage (power): 300 V
