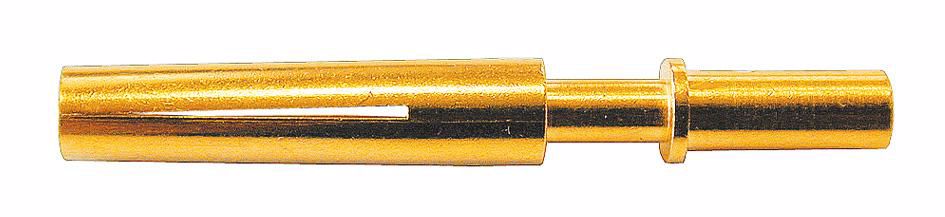

SYN-419-CONTACT-FEMALE

Gold crimp male contact size 11 - AWG 14-12

This original Syntax component is provided with a protective jacket to improve contactation on SSX 19 pin connector. - improved electrical conductivity - lower operating temperature - self-centered for a seamless connection - increased number of mating cycles Crimp or Solder, Gold or Silver plated versions available.

Cable Speakon - [6-12mm] - 2P, Female (Disassambled)

2 pole speakON cable connector, screw terminal assembly, chuck type strain relief for cable diameters 6 to 12 mm

speakON connectors are the industry-standard for loudspeaker connections. This product series offers extremely reliable and robust cable connectors with a proven twist lock system. speakON cable connectors feature solid contacts with screw-type terminals including a stranded wire protection

Features & Benefits

Fem Cab 419, M40, gold cont (-ring) reduced cable gland

The SYNTAX® SSX series, designed for professional applications and perfectly compatible with standard Socapex 419 series, is extremely robust being made of thick wall construction machined aluminium alloy, with a hard black anodized finish or black painted finish. The contacts insert is chloroprene rubber, which enables the use of removable contacts, either crimp or solder version. The unit is completely IP67 watertight when mated. Electrical safety and compliance is guaranteed by internal insulation of the shells, obtained through a safety insulating sleeve to prevent electric shock, as well as “first make last break” ground contacts. Grounding rings allow bussing of the ground contacts. Locking rings and backshells are designed for easy handling.

Male Cab 419,M40, gold cont (+ring) reduced cable gland

The SYNTAX® SSX series, designed for professional applications and perfectly compatible with standard Socapex 419 series, is extremely robust being made of thick wall construction machined aluminium alloy, with a hard black anodized finish or black painted finish. The contacts insert is chloroprene rubber, which enables the use of removable contacts, either crimp or solder version. The unit is completely IP67 watertight when mated. Electrical safety and compliance is guaranteed by internal insulation of the shells, obtained through a safety insulating sleeve to prevent electric shock, as well as “first make last break” ground contacts. Grounding rings allow bussing of the ground contacts. Locking rings and backshells are designed for easy handling.
