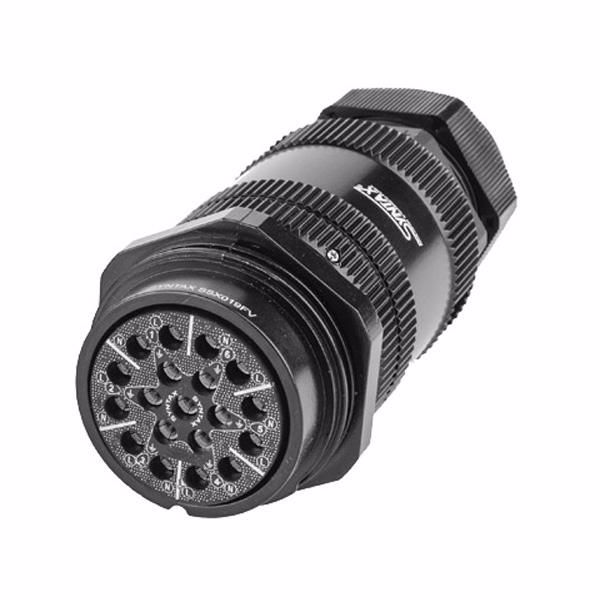

SYN-419FCGC

Fem Cab 419, M40, gold cont (-ring) reduced cable gland

The SYNTAX® SSX series, designed for professional applications and perfectly compatible with standard Socapex 419 series, is extremely robust being made of thick wall construction machined aluminium alloy, with a hard black anodized finish or black painted finish. The contacts insert is chloroprene rubber, which enables the use of removable contacts, either crimp or solder version. The unit is completely IP67 watertight when mated. Electrical safety and compliance is guaranteed by internal insulation of the shells, obtained through a safety insulating sleeve to prevent electric shock, as well as “first make last break” ground contacts. Grounding rings allow bussing of the ground contacts. Locking rings and backshells are designed for easy handling.
Manufacturer: Syntax
Availability: In stock
Cable
Cable
Customers who bought this item also bought

SYN-419-CONTACT-FEMALE

Gold crimp female contact size 11 - AWG 14-12

This original Syntax component is provided with a protective jacket to improve contactation on SSX 19 pin connector. - improved electrical conductivity - lower operating temperature - self-centered for a seamless connection - increased number of mating cycles Crimp or Solder, Gold or Silver plated versions available.

SYN-419-CONTACT-MALE

Gold crimp male contact size 11 - AWG 14-12

This original Syntax component is provided with a protective jacket to improve contactation on SSX 19 pin connector. - improved electrical conductivity - lower operating temperature - self-centered for a seamless connection - increased number of mating cycles Crimp or Solder, Gold or Silver plated versions available.

TIT-3G2.5

Titanex H-07RN-F 3G2,5mm²/m - Outside diameter: 14mm

The TITANEX® flexible rubber cable range offers exceptional performances and is designed to release you from all your constraints. Robust yet flexible, TITANEX® is easy to use and withstands the toughest of conditions, such as hard-wearing situations, extreme temperatures and most chemicals. For more than 50 years the TITANEX® cable range properties have been recognized as the best choice for all mobile and fixed installations in industrial environments such as construction sites, cranes, machines tools, factories, generators etc.

TITANEX® is also suitable for public environments and temporary events such as festivals or sports competitions, where the cable is often laid directly on the ground with no protection.



The cable may be rated 0,6/1 kV where the installation has built-in protection and for motors in lifting appliances - machine tools - etc.

When pick up at Willebroek, reels of 500 meters are possible, when you select transport, only 100 meter lengths will be sended.

NEU-NL2FXX-W-S-D

Cable Speakon - [6-12mm] - 2P, Female (Disassambled)

2 pole speakON cable connector, screw terminal assembly, chuck type strain relief for cable diameters 6 to 12 mm

speakON connectors are the industry-standard for loudspeaker connections. This product series offers extremely reliable and robust cable connectors with a proven twist lock system. speakON cable connectors feature solid contacts with screw-type terminals including a stranded wire protection

Features & Benefits

  • Mates with 2-pole chassis connector as well as 4-pole chassis connector (contacts +1/-1)
  • Ergonomic design with slip-proof two-component molded housing
  • Up to 37 A rms current rating
  • Unique Neutrik locking bushing and strain relief for cable diameters 6 mm to 12 mm
  • IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1
  • Superior NEUTRIK quality standard, extremely robust and reliable
  • Easy and reliable twist lock system
  • Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
  • Improved kink protection by two-component bushing
