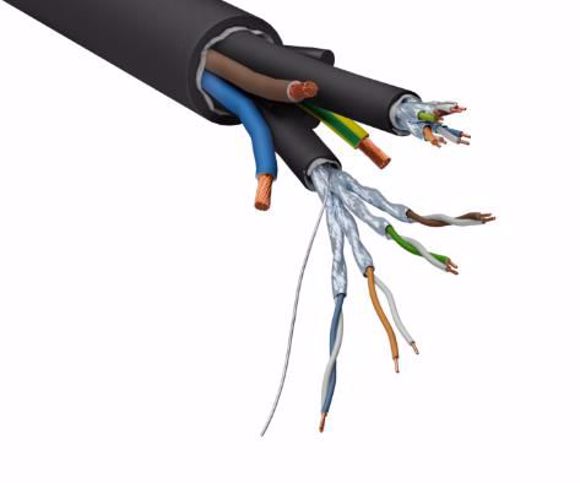

SYN-7YLN2CAT6APW360

DATA CABLE 2 x CAT6A U/FTP (10 GIGABIT ETHERNET CLASS EA) + POWER 3x6mm² - OD: 20,0mm

Technical data - Network

Core: 2

Conductor: Nr.4 x Twisted Pairs x 0,25 mm² / 23 AWG (1 x 0,57 mm) Oxygen free Copper

Drain Wire: 0,14 mm² / 26 AWG (1 x 0,40 mm) Tinned Oxygen free Copper (OFC)

Insulation Wires: Ø 1,25 mm TIA/EIA 568 A-B Skin FPE

Sheath: Ø 8,0 mm Black Numbered PVC

Shield: Alu-Polyester Foil ,100% Coverage

DC Loop R Cond : 145 Ω/Km

DCR Shield: N.D.

Capacitance C/C: 45 nF/Km

Impedance (Z0): 100 ?

NPV: 76%

Standard: ISO/IEC 11801

Matching Plug: RJ45(cat6)


Technical data - Energy

Conductor: Nr.3 x 6,0 mm² / 10 AWG (Class 5 - Stranded Cable) Copper

Insulation Wires: Ø 4,8 mm Y/G, Blue, Brown PVC

Sheath: Free

DC Loop R Cond : IEC_60344

Standard: IEC_60228 - Class 5

Manufacturer: Syntax
Availability: Out of stock (On request)
