| Category |
Description |
Qty |
| Enclosure |
POWERCUBES-80 Enclosure |
1 |
| Input |

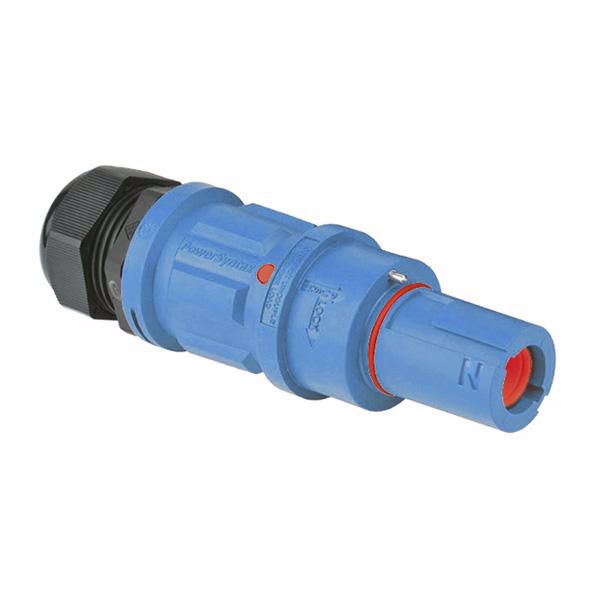

PowerSyntax® Panel Inlet 480A Drain | L1, L2, L3, N, E | External |
1 |
| Main Switch |
400A 4-Pole Main Switch with External Red/Yellow Operating Handle |
1 |
| Outputs |
CEE Panel Socket 400V 125A 5P 6H IP67 Red |
2 |
| CEE Panel Socket 400V 63A 5P 6H IP67 Red |
2 |
| CEE Panel Socket 400V 32A 5P 6H IP44 Red |
4 |
| Schuko Panel Socket 230V 16A 2P + Earth IP44 Blue (Small Flange) |
6 |
| Protection |
125A 4-Pole 300mA Type A Residual Current Module (FBHMV-125/4/03-A) |
2 |
| 125A 3P+N C-Curve Circuit Breaker 15kA (AZ-3N-C125) |
2 |
| 63A 4-Pole 300mA Type A Residual Current Circuit Breaker (PFIM) |
2 |
| 63A 3P+N C-Curve Circuit Breaker 6kA (PLS6-C63/3N-MW) |
2 |
| 63A 4-Pole 30mA Type A Residual Current Circuit Breaker (PFIM) |
2 |
| 32A 3P+N C-Curve Circuit Breaker 6kA (PLS6-C32/3N-MW) |
4 |
| 40A 4-Pole 30mA Type A Residual Current Circuit Breaker (PFIM) |
1 |
| 16A 2-Pole C-Curve Circuit Breaker 6kA (PLS6-C16/2-MW) |
3 |
