TLX-TL-10GDAC

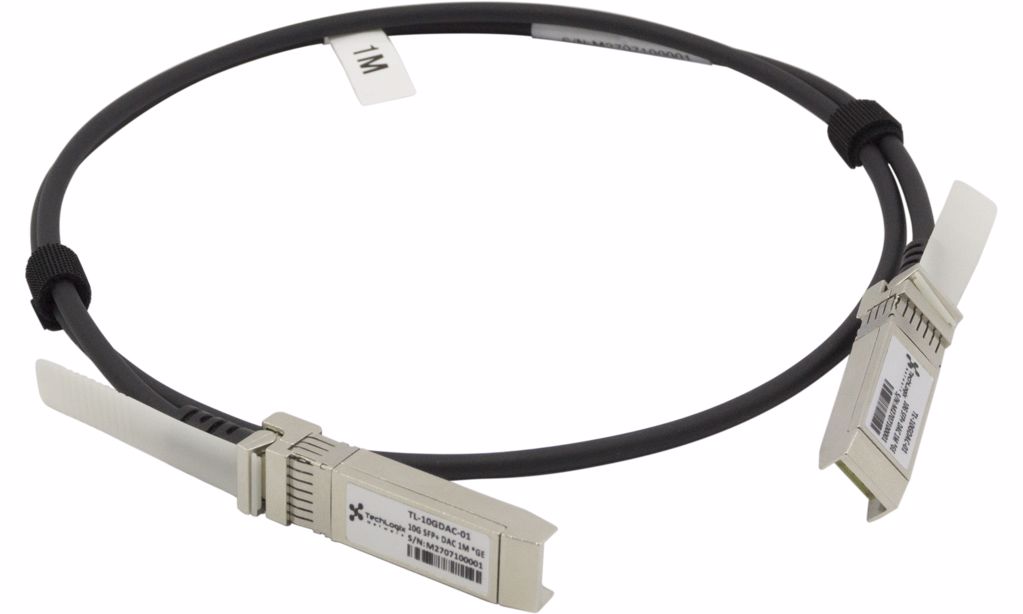

1m (3ft) Generic Compatible 10G SFP+ Passive Direct Attach Copper Twinax Cable 30AWG

Interconnect Cable with SFP+ Connectors – Direct Attach Cable

TechLogix DACs are a low-cost way to utilize the SFP+ ports on our fiber optic products and standard 10G network equipment.

DACs (Direct Attach Cables) use copper cabling between SFP footprint 20-pin connectors to eliminate the need for expensive optoelectronics.  They are a great solution for in-rack or other short connections that would otherwise require fiber optic cabling.



  • Compatible with TechLogix TL-IPFO-T01, TL-IPFO-R01 & TL-FO2-HDC extenders
  • Support for data rates up to 10.5Gbps
  • Available in 1m, 3m, and 7m lengths
  • Passive copper twinax cable
  • SFP+ MSA connectors
Manufacturer: TechLogix
Availability: Out of stock (On request)
*
