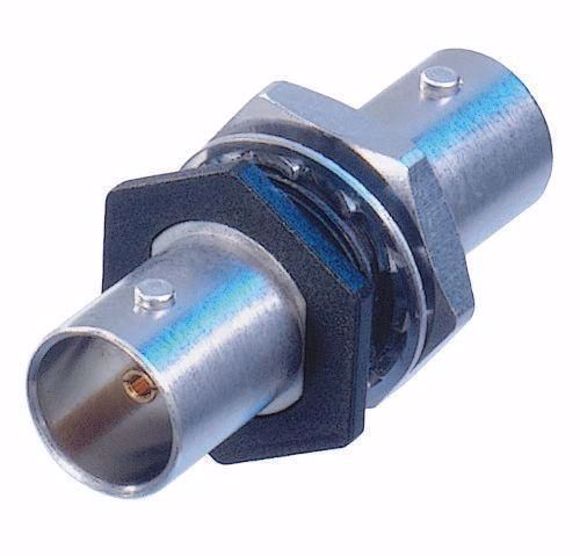

NEU-NBB75FI

Bushing XX-Series

Coloured boot for XX series XLR connectors, available in 10 standard colors. Used to easily distinguish cables. They have to be installed before the connector is soldered.

RearTWIST UHD BNC Cable Connectors for Belden 1505F

The rearTWIST UHD BNC connectors are specifically designed for high resolution video signal transmissions. Due to the unique insulator and contact pin design, the connectors feature low return loss values for 4K and 8K signals. Features & Benefits •Optimized contact pin and insulator design for UHD-data transmissions •Proven rearTWIST technology •Swiss antraloy plating •Fully compatible with conventional BNC chassis connectors •Improved return loss values at high frequencies

DMX Binary 234 AES/EBU MKII; 2 x 0,34 mm²; PVC Ø 6,20 mm; black

Technical Data: - Properties: OFC oxygen free copper - Properties: Digital 110 Ω AES / EBU - Properties: Analog - Application area: ELA 100 V - Application area: Installation - Application area: Mobile outdoor / indoor - Application area: Stage / live - Application area: Studio / Broadcast - Application: DMX - Colour: black - Colour detailed: black - Signal transmission: symmetrical - Jacket material: PVC - Jacket Ø: 6,2 mm - Number of Channels (AES/EBU, DMX): 1 - Inner conductor (AES/EBU, DMX): 2 - Inner conductor (AES/EBU, DMX): 0,34 mm² - Inner conductor Ø (AES/EBU, DMX): 0,66 mm - AWG (AES/EBU, DMX): 22 - Shielding: Copper spiral shielding + aluminum steamed fleece - Copper strands (AES/EBU, DMX): 19 - Copper strand Ø (AES/EBU, DMX): 0,15 mm - Conductor insulation material: Foam / Skin-PE - Conductor insulation Ø: 1,5 mm - Weight per 1 m: 50 g - UV-resistant: yes - Fire load per m: 0,17 kWh - Style variant: round - Shielding factor: 100 % - Packing: 100 m spool - Temperature min.: -25 °C - Temperature max.: 70 °C - Width: 6,2 mm - Height: 6,2 mm - Capac. cond./cond. per 1 m (AES/EBU, DMX): 63 pF - Capac. cond./shield. per 1 m (AES/EBU, DMX): 115 pF - Impedance: 110 Ω - Insulation resist. per 1 km: 1 GΩ - Insulation resist. per 1 km (AES/EBU, DMX): 1 GΩ - Conductor resistance per 1 km: 53 Ω - Shield. resistance per 1 km: 28 Ω

COAX Cable RG59/U - BLACK - Flexible

22 AWG stranded (7x29) .031" bare compacted copper conductor, gas-injected foam HDPE insulation, tinned copper double braid shield (95% coverage), PVC jacket.

Declaration of Conformity
