SOM-200-0351

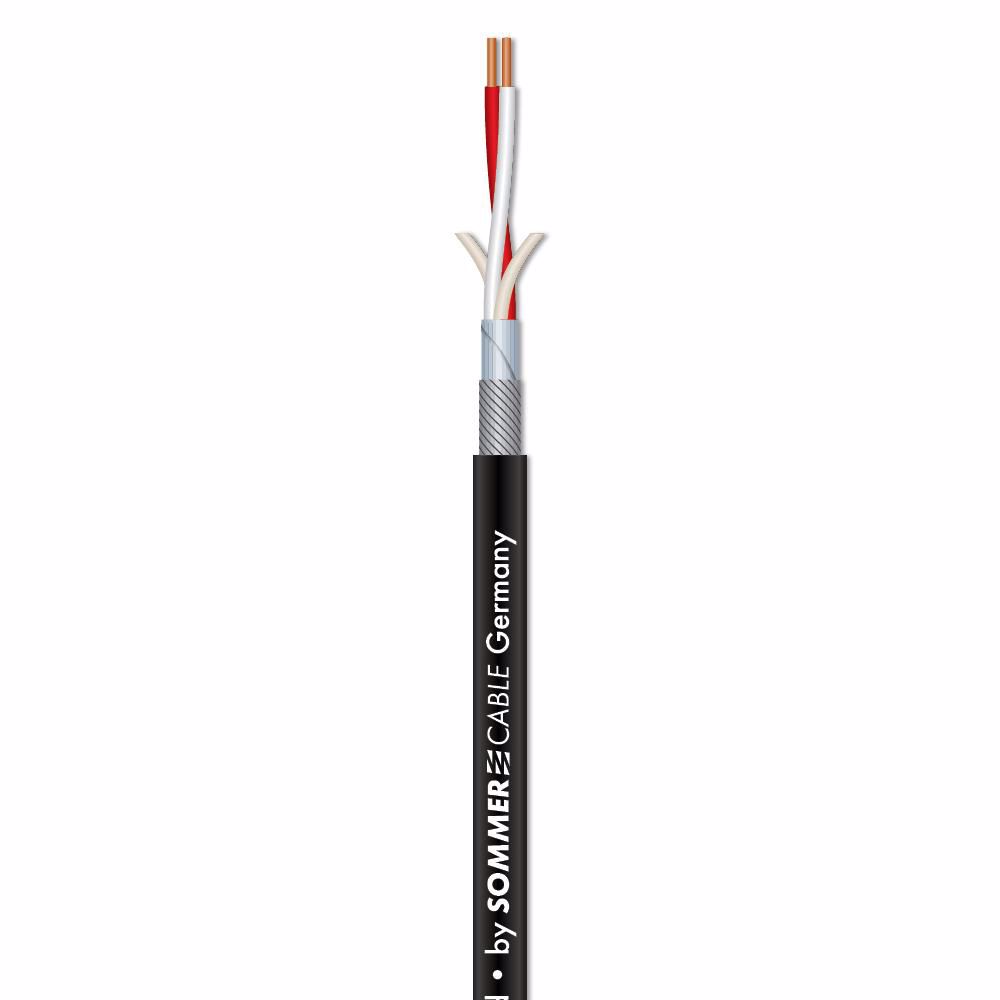

Patch & Microphone Cable SC-Goblin; 2 x 0,14 mm²; PVC Ø 4,60 mm; black

Technical Data: - Properties: Analog - Properties: OFC oxygen free copper - Application area: Installation - Application area: Studio / Broadcast - Application: Patch & Microphone Cable - Colour: black - Colour detailed: black - Signal transmission: symmetrical - Jacket material: PVC - Jacket Ø: 4,6 mm - Number of Channels (audio): 1 - Inner conductor (audio): 2 - Inner conductor (audio): 0,14 mm² - Inner conductor Ø (audio): 0,42 mm - AWG (audio): 26 - Shielding: Copper spiral sleeve tin-plated + metalic fleece - Copper strands (audio): 18 - Copper strand Ø (audio): 0,10 mm - Conductor insulation material: PE - Conductor insulation Ø: 1,05 mm - Weight per 1 m: 27 g - UV-resistant: yes - Fire load per m: 0,10 kWh - Style variant: round - Shielding factor: 100 % - Packing: 100 m spool - Temperature min.: -25 °C - Temperature max.: 70 °C - Width: 4,6 mm - Height: 4,6 mm - Capac. cond./cond. per 1 m (audio): 65 pF - Capac. cond./shield. per 1 m (audio): 120 pF - Insulation resist. per 1 km: 0,2 GΩ - Insulation resist. per 1 km (audio): 0,2 GΩ - Conductor resistance per 1 km: 140 Ω - Shield. resistance per 1 km: 30 Ω
Manufacturer: Sommer
Availability: In stock
